enquiry@asip.com.myDM-524B.Dynamic Microphone
PA/Sound System --- TOA ---
| Previous ‹‹ | » Next |

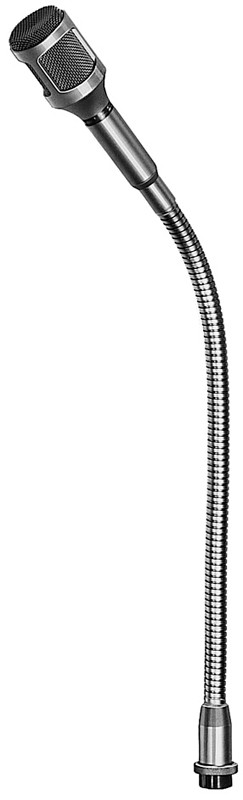

A unidirectional microphone with a gooseneck shaft. Use this microphone in conjunction with the ST-73A desk-top stand (option).
Specifications:
| Type | Moving coil microphone |
| Polar Pattern | Cardioid pattern |
| Rated Impedance | 600 Ω, balanced |
| Rated Sensitivity | -54.5 dB (1 kHz, 0 dB=1 V/Pa) |
| Frequency Range | 100 Hz - 10 kHz |
| Output Connector | φ21, 3-pin plug (BTS21P3B) |
| Finish | Microphone body, Gooseneck shaft: Gold, sparkling paint |
| Weight | 465 g |
| Usable Stand | ST-73A (option) or φ21 mm 3-pin socket |
| Accessories | φ21 3-pin receptacle (BTS21R3A)……1, M3×10 screw……3, W3 washer……3, SW3 spling washer……3, M3 nut……3 |
Brochure : https://cdn1.npcdn.net/attachments/1548811416504e5b3e37a2d6bc037b25622e97a6fc.pdf
