VX-200SI.Control Input Module

     PA/Sound System ---    TOA    ---

Previous ‹‹ » Next

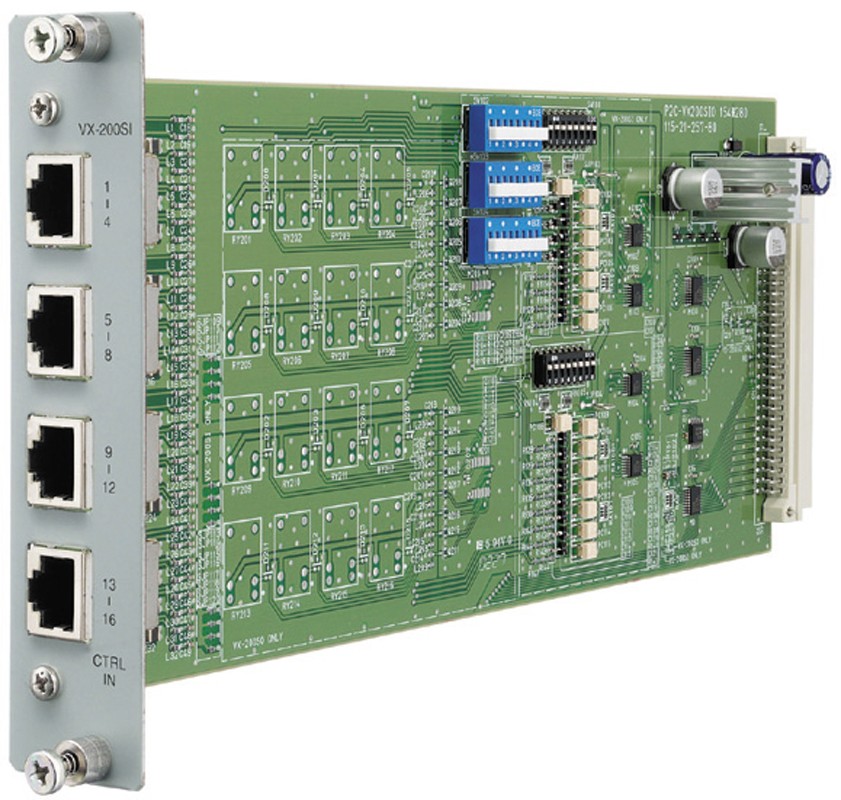

VX-200SI.Control Input Module


TOA's VX-200SI Control Input Module is used to increase the number of control inputs to be used in the VX-2000 system. It features 16 control inputs and is mounted in the VX-2000SF Surveillance Frame.

Specifications:


Power Source Supplied from VX-2000SF
Current Consumption Under 100 mA
Control Input 16 inputs, no-voltage make contact, open voltage: 24 V DC,
short circuit current: under 10 mA, RJ45 connector
Finish Panel: Surface-treated steel plate
Dimensions 30.5 (W) × 132.6 (H) × 290.3 (D) mm
Weight 200 g
Applicable Model VX-2000SF




Brochure : https://cdn1.npcdn.net/attachments/1548644518504e5b3e37a2d6bc037b25622e97a6fc.pdf
