AT-603AP.Attenuator

     PA/Sound System ---    TOA    ---

Previous ‹‹ » Next

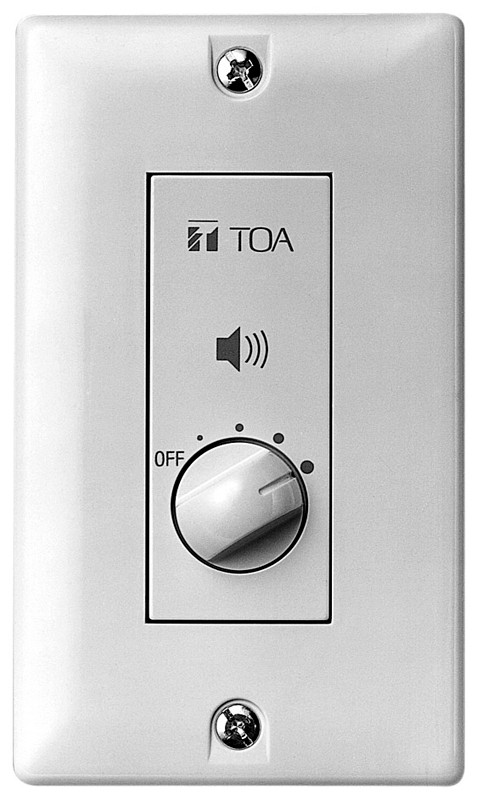

AT-603AP.Attenuator


The AT-603AP is a flush-mounted wall attenuator and uses a transformer which allows connectionof a wide range of loads (60 W or less). Volume can be adjusted in five steps. The AT-603AP features push-in terminal block for easy connection.

Specifications:


Input Range 0.5 W - 60 W
Attenuation 5 steps (0 dB, -6 dB, -12 dB, -18 dB, OFF)
Applicable Cable 600 V vinyl-insulated cable (Indoor Vinyl or Heat-resistant Indoor Vinyl cable)
Solid cable: φ0.8 (0.03') - φ1.6 (0.06') mm
Terminal Push-in connector
Operating Temperature -10 íŠ to +50 íŠ
Finish Knob, panel, plate: ABS resin, white (RAL 1013 equivalent)
Case: ABS resin, black
Dimensions 70 (W) × 120 (H) × 52.4 (D) mm (2.76' × 4.72' × 2.06') (with plate)
41 (W) × 108 (H) × 52.4 (D) mm (1.61' × 4.25' × 2.06') (attenuator only)
Weight 210 g (0.46 lb) (unit only)
Accessory Plate …1, Plate mounting screw …2, Box mounting screw …2
Applicable Plate YP-1AF (option)
Applicable Box YS-11A (option)





Brochure : https://cdn1.npcdn.net/attachments/1548638034504e5b3e37a2d6bc037b25622e97a6fc.pdf
