TU-631.Driver Unit

     PA/Sound System ---    TOA    ---

Previous ‹‹ » Next

TU-631.Driver Unit

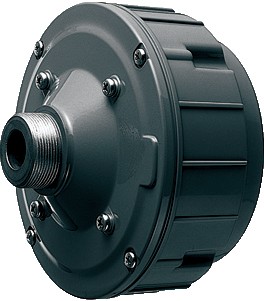

The TU-631 is a highly intelligible driver unit suited to public address announcement applications. Use the driver unit in combination with a suitable horn (optional). Its powder-coated finish and stainless steel screws ensure the unit's weatherproof capability.

Specifications:


Applicable Horns TH-650, TH-660
Rated Input 30 W
Rated Impedance 16 Ω
Sensitivity 110 dB (1 W, 1 m) (When operated with JIS C 5504 standard horn.)
Frequency Response 150 Hz - 6 kHz (When operated with JIS C 5504 standard horn.)
Dust/Water Protection IP65 (When a driver is operated with a horn.)
Horn Coupling 1 - 3/8 18 threads (inch screw)
Polarity Hot: Black, Com: White
Operating Temperature -20°C to +60°C (-4 °F to +140 °F) (no condensation)
Finish Flange: Aluminum, gray, powder coating
Rear cover: ABS resin, gray
Screws: Stainless steel
Speaker cable: Polyvinyl chloride insulated cabtyre cable
(6 mm (0.24') in diameter, 600 mm (23.62') in length)
Dimensions Φ139 × 106 (D) mm (Φ5.47' × 4.17')
Weight 1.4 kg (3.09 lb)
Option Driver unit cover: UC-200A
Matching transformer: TM-30T, TM-60T



Brochure : https://cdn1.npcdn.net/attachments/1548405109968c0b87485d63262ca728a1b99fbaea.pdf
