MT-251H.Matching Transformer

     PA/Sound System ---    TOA    ---

Previous ‹‹ » Next

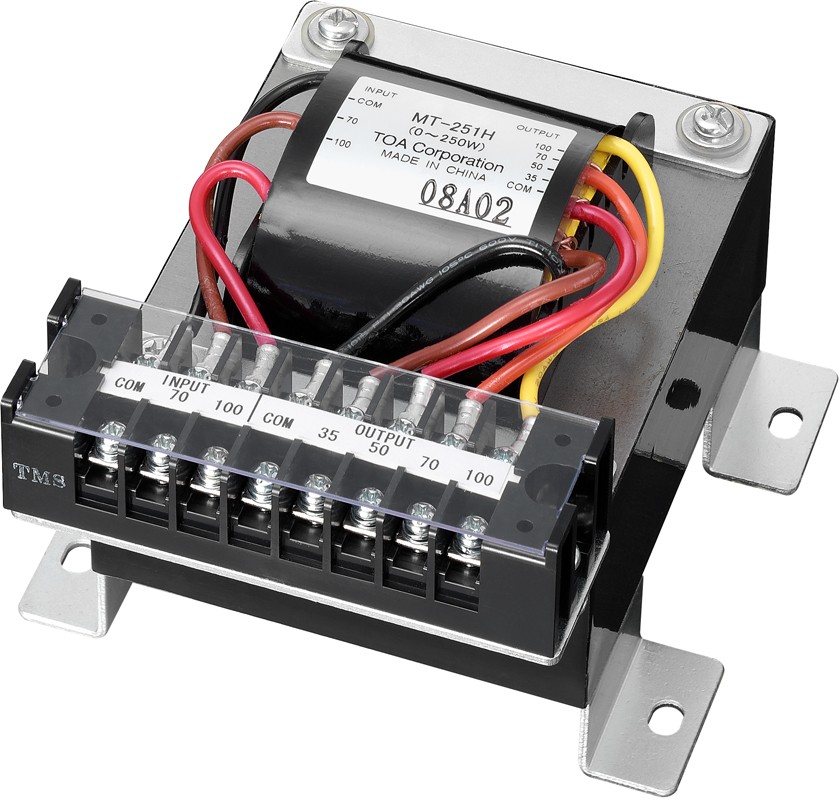

MT-251H.Matching Transformer


Designed for use with the DA-250DH, DA-250FH, DA-500F-HL and DA-500FH Multi-Channel Power Amplifiers, the MT-251H electrically isolates the high-impedance speaker lines from the amplifier.

Specifications:


Capacity 0 - 250 W
Primary Side 100 V line, 70 V line
Secondary Side 100 V line, 70 V line, 50 V line, 35 V line
Frequency Response 30 - 18,000 Hz (+0 dB, -3 dB)
Connection Terminal M3 screw terminal, distance between barriers: 6.6 mm (0.26')
Dimensions 108 (W) × 80 (H) × 122 (D) mm (4.25' × 3.15' × 4.8')
Weight 2.4 kg (5.29 lb)




Brochure :https://cdn1.npcdn.net/attachments/154846664255fb8e615ee5e468d2d6605fbc86fea9.pdf
