FS-7000PS.DC Power Supply Panel

     PA/Sound System ---    TOA    ---

Previous ‹‹ » Next

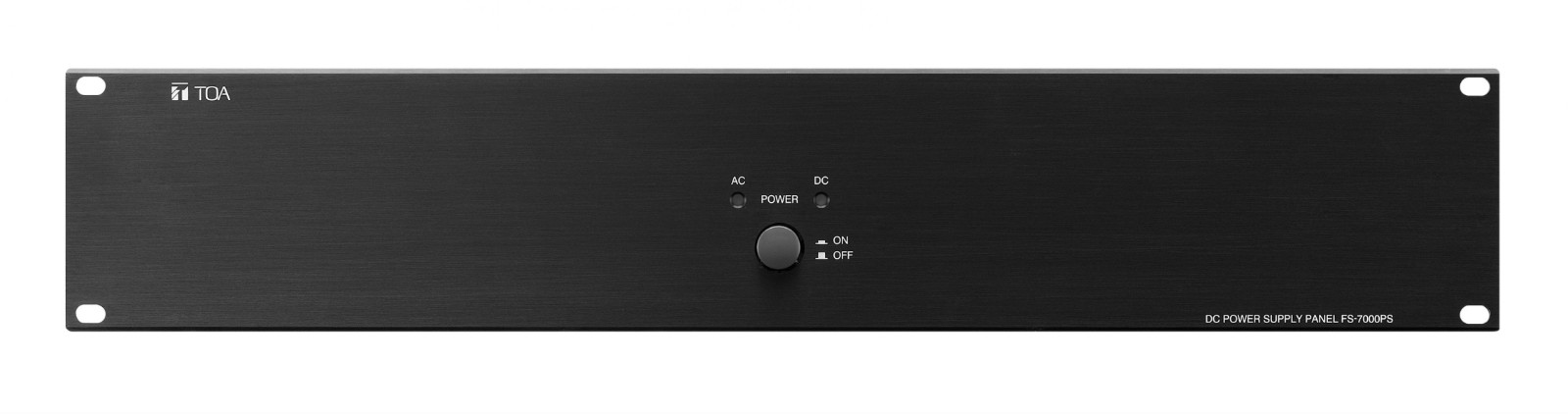

FS-7000PS.DC Power Supply Panel

The FS-7000PS DC Power Supply Panel supplies 24 V DC power to each component of the FS-7000 Series Voice Evacuation System. The additional use of the emergency power supply panel permits 24 V DC power to be supplied for emergency broadcast to be initiated during a power failure.

Specification:

Power Source 230 V AC, 50 Hz
24 V DC (19.5 - 27 V), M3 screw terminal, distance between barriers: 6.4 mm
Power Consumption 195 W (275 VA) at rated power output (AC operation)
Input 24 V DC, M3 screw terminal, distance between barriers: 6.4 mm
Output AC operation: 24 V DC ±0.5 V, 5 A (total)
DC operation: Voltage lowering DC input voltage approx. by 1 V
M3 screw terminal, distance between barriers: 6.4 mm
External Control Input/Output Emergency power connection
Emergency power control
Operating Section Power switch
Display Section AC power indicator, DC power indicator
Operating Temperature 0íŠ to +40íŠ
Operating Humidity Under 90% RH (no condensation)
Finish Panel: Aluminum, black, alumite
Dimensions 482 (W) × 88.4 (H) × 338.2 (D) mm
Weight 8.9 kg
Accessory Power cord (1.8 m) …1, Fuse (6.3 A) …1, Fuse (8 A) …1



Brochure : https://cdn1.npcdn.net/attachments/1459499310c364ece6f7eadc03ded3e2127dc3c57c.pdf
