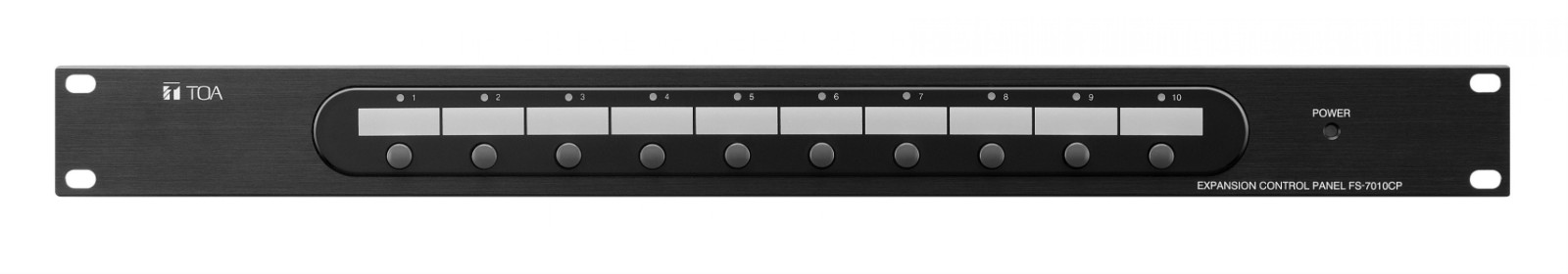

FS-7010CP.Expansion Control Panel

The FS-7010CP is the expansion operation panel for the FS-7000 Series Voice Evacuation System. It is designed to be used in conjunction with the FS-7000JP Junction Panel and can control up to 10 speaker zones.



Power Source 24 V DC, M3 screw terminal, distance between barriers: 6.4 mm
Current Consumption 150 mA
External Control Input Automatic fire alarm system (10 zones):
No-voltage make contact input, open voltage: 26 V DC,
short-circuit current: Under 5 mA, removable terminal block (12 pins)
Output Control 10 individual zones or 10 group zones (when optional FS-7000GM is connected)
Operating Section Zone selection keys
Display Section Power indicator, Zone indicators
Operating Temperature 0 to +40
Operating Humidity Under 90% RH (no condensation)
Finish Panel: Aluminum, black, alumite
Dimensions 482 (W) × 44 (H) × 337 (D) mm
Weight 3 kg
Accessory Connection cable (14 pins, 60 cm) …1, Connection cable (10 pins, 2.5 m) …1,
Removable terminal plug (12 pins) …1
