FS-7012PA.Power Amplifier

     PA/Sound System ---    TOA    ---

Previous ‹‹ » Next

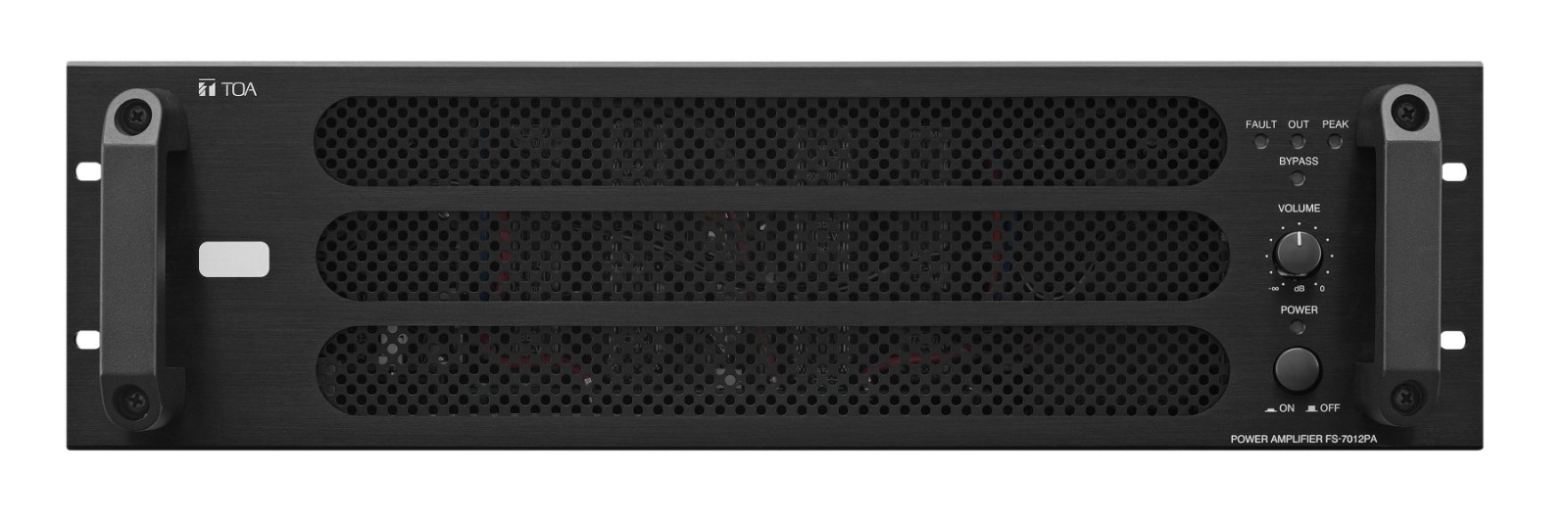

FS-7012PA.Power Amplifier

The FS-7012PA power amplifier with rated output power of 1200 W is designed to be used in conjunction with the FS-7000 Series Voice Evacuation System. Connecting a standby amplifier to the optional YA-7000 amplifier auto switching module installed in the FS-7012PA power amplifier allows the FS-7012PA amplifier to automatically switch over to the standby amplifier when the module detects the power amplifier's failure.

Specification :



Power Source 230 V AC, 50 Hz
Power Consumption 2130 W (2670 VA) (at rated output), 750 W (950 VA) (IEC 65),
58 W (110 VA) (at no signal), 13 W (14 VA) (standby)
Input 0 dB*, 10 kΩ, transformer-balanced, removable terminal block (3 pins)
Rated Output 1200 W
Load Impedance 100 V line, 8.3 Ω, M4 screw terminal, distance between barriers: 9 mm
Frequency Response 80 - 15,000 Hz , within ±3 dB (1 kHz)
Distortion Under 0.1% (at 1 kHz rated output)
S/N Rated Over 90 dB, 20 - 20,000 Hz band pass
Control Input Volume control bypass control input: No-voltage make contact input,
open voltage: Under 24 V DC, short-circuit current: Under 10 mA,
removable terminal block (2 pins)
Indicator Power (green), Signal (green), Peak (red), Fault (red), Bypass (orange)
Cooling Forced air cooling (Under 50¡æ: Stop, 50¡æ - 75¡æ: Low to high speed (variable),
Over 75¡æ: High speed)
Operating Temperature 0¡æ to +40¡æ
Operating Humidity Under 90% RH (no condensation)
Finish Panel: Aluminum, black, Alumite
Dimensions 482 (W) × 132.6 (H) × 532.7 (D) mm
Weight 35.4 kg
Accessory Terminal cover …1, Terminal cover mounting screw …2,
Removable terminal plug (2 pins) …2, Removable terminal plug (3 pins) …2
Option Amplifier auto switching module: YA-7000

Brochure: https://cdn1.npcdn.net/attachments/145950031019b02674894da14b0d829f057042e1f6.pdf
