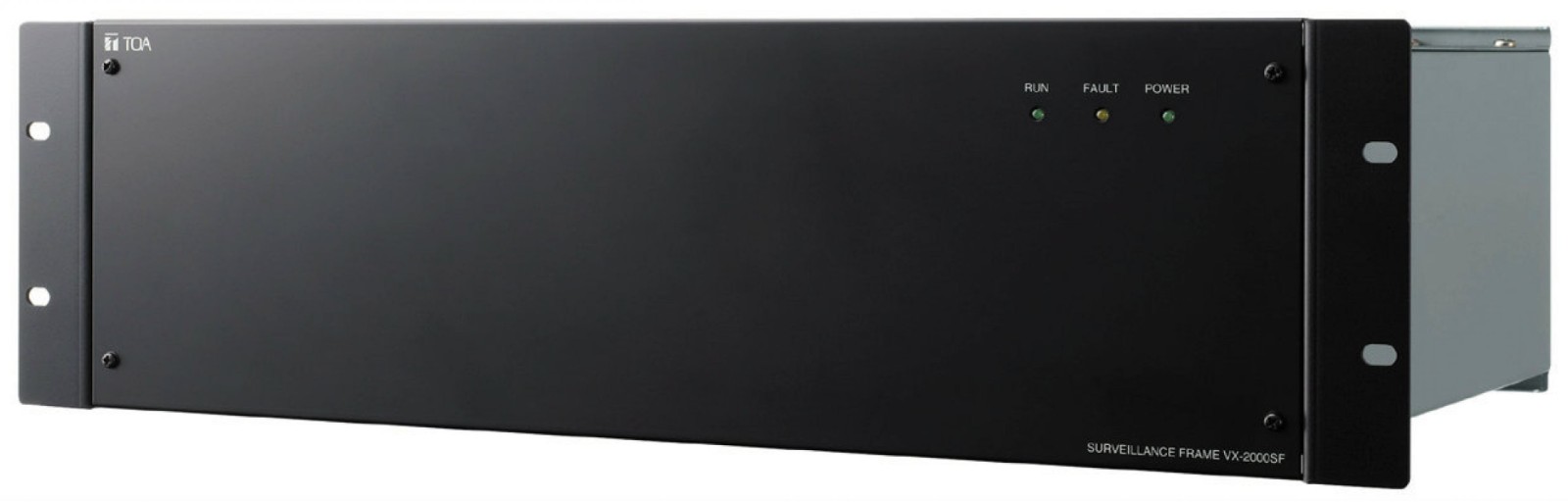

The VX-2000SF Surveillance Frame is the output matrix section of the VX-2000 system that assigns audio signals to individual zones from 4 audio buses. It can be extended to up to 8 units. A total of 10 units of output modules and control modules can be installed per VX-2000SF. The following 6 types of modules can be used: the VX-200SP Pilot Tone Detection module, the VX-200SP-2 Pilot Tone Detection module (End of Line), the VX-200SZ Impedance Detection module, the VX-200SZ-2 Impedance Detection module, the VX-200SI Control Input module, and the VX-200SO Control Output module.
Specifications:
| Power Source |
24 V DC (operating range: 20 - 40 V DC) M3.5 screw terminal, distance between barriers: 8.8 mm |
| Current Consumption | Under 2 A (40 V DC) |
| Number of Module Slot | 10, usable modules: VX-200SZ, VX-200SP, VX-200SI, VX-200SO |
| Frequency Response | 20 - 20,000 Hz |
| Signal to Noise Ratio | Over 60 dB |
| Distortion | Under 0.5% |
| Cross Talk | Under -60 dB (1 kHz, 0 dB*) |
| Audio Link Input/Output |
Number of audio busses: 4 0 dB*, electronically balanced, RJ45 female connector Twisted-pair straight cable (TIA/EIA-586A standard) |
| Standby Amplifier Link |
RJ45 female connector for connecting the VP-2064, VP-2122, VP-2241, VP-2421 Power Amplifier. Twisted-pair straight cable (TIA/EIA-586A standard) |
| Communication System |
VX-2000, VX-2000SF: RJ45 female connector × 2, LONWORKS RS-485 VX-2000DS: RJ45 female connector × 2, Twisted-pair straight cable (TIA/EIA-586A standard) |
| Operating Temperature | 0℃ to +40℃ |
| Finish | Panel: Surface-treated steel plate, black, 30% gloss, paint |
| Dimensions | 482 (W) × 132.6 (H) × 337 (D) mm |
| Weight | 5.6 kg |
| Accessory |
Rack mounting screw……4, Fiber washer……4, Blank panel……9, Rack mounting bracket (preinstalled on the unit) ……2, Standby amp. cable (3 m) ……1, Blank panel mounting screw……18 |
| Option | Isolation transformer: IT-450 (audio link output) |
Brochure : https://cdn1.npcdn.net/attachments/14597416853af74c43883f627b89fdb0801ae6f47b.pdf
