BS-1030B.Universal Speaker

     PA/Sound System ---    TOA    ---

Previous ‹‹ » Next

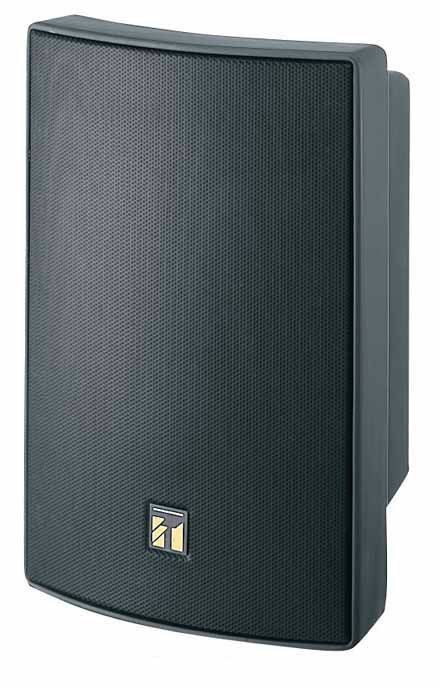

BS-1030B.Universal Speaker

The BS-1030B is a small, 2-way bass-reflex type speaker featuring a wide frequency range suitable for use for announcements and music playback. The BS-1030B can be used for both high-impedance and low-impedance applications. The speaker's splash-proof construction permits it to be installed under the eaves where the speaker is not directly exposed to rain

Specifications:



Enclosure 2-way bass-reflex type
Rated Input 30 W
Rated Impedance 8 Ω
100 V line: 330 Ω (30 W), 500 Ω (20 W), 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W)
70 V line: 170 Ω (30 W), 250 Ω (20 W), 330 Ω (15 W), 500 Ω (10 W), 1 kΩ (5 W)
Sound Pressure Level 90 dB (1 W, 1 m)
Frequency Response 80 Hz - 20 kHz
Speaker Component 12 cm cone-type + dome-type
Speaker Cord 2-core cabtyre cord with diameter of 6 mm
Operating Temperature -10 íŠ to +50 íŠ
Water Protection IPX4 (can be installed vertically or horizontally.*)
Finish Enclosure: ABS resin, black (RAL9011 GRAPHITE BLACK), paint
Net: Surface treated steel plate, black (RAL9011 GRAPHITE BLACK), powder coating
Bracket: Surface treated steel plate, black equivalent to RAL9011 GRAPHITE BLACK,
powder coating
Dimension 196 (W) × 290 (H) × 150 (D) mm (unit only)
Weight 2.5 kg (unit only)
Accessory Bracket…1, Bracket mounting screw…2, Bracket mounting washer…2
Option Applicable bracket: WCB-13B, SP-410
Applicable stand: ST-16A


Brochure: https://cdn1.npcdn.net/attachments/145949287694e40d2011245dfd7509ff2f710a8e56.pdf
