PC-648R.Ceiling Speaker

     PA/Sound System ---    TOA    ---

Previous ‹‹ » Next

PC-648R.Ceiling Speaker

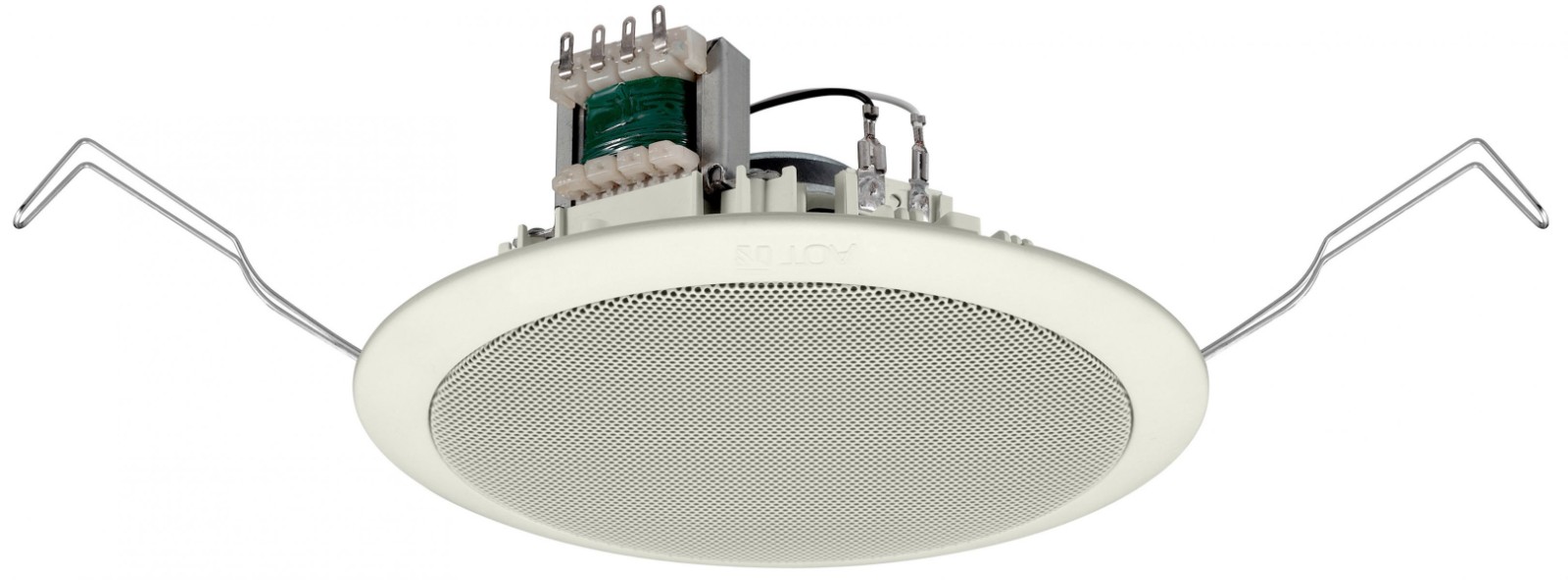

Integrated with a resin panel and speaker frame, the PC-648R is the ceiling mount speaker with a metal attached. It features spring clamp mechanism for easy speaker mounting to the ceiling. The input impedance can be easily changed by changing the tap position of the transformer.

Specifications:



Rated Input 6 W (100 V line), 3 W (70 V line)
Rated Impedance 100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 10 kΩ (1 W)
70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W)
Sensitivity 90 dB (1 W, 1 m) (500 Hz - 5 kHz, pink noise)
Frequency Response 100 Hz - 18 kHz (peak -20 dB)
Speaker Component 12 cm (5') cone-type
Dimensions for Fixing Hole Mounting hole: Φ145±5 mm (Φ5.71'±0.2')
Ceiling thickness: 5 - 25 mm (0.2' - 0.98')
Speaker Mounting Method Spring clamp
Finish Baffle: Polypropylene resin, white (RAL 9016 equivalent)
Grille: Surface-treated steel plate net, white (RAL 9016 equivalent), paint
Dimensions Φ168 × 77 (D) mm (Φ6.61' × 3.03')
Weight 470 g (1.04 lb)
Accessory Paper pattern …1


Brochure : https://cdn1.npcdn.net/attachments/1459495212f5fbac335431f7f4413c807ec233aaf6.pdf
