EM-700.Boundary Microphone

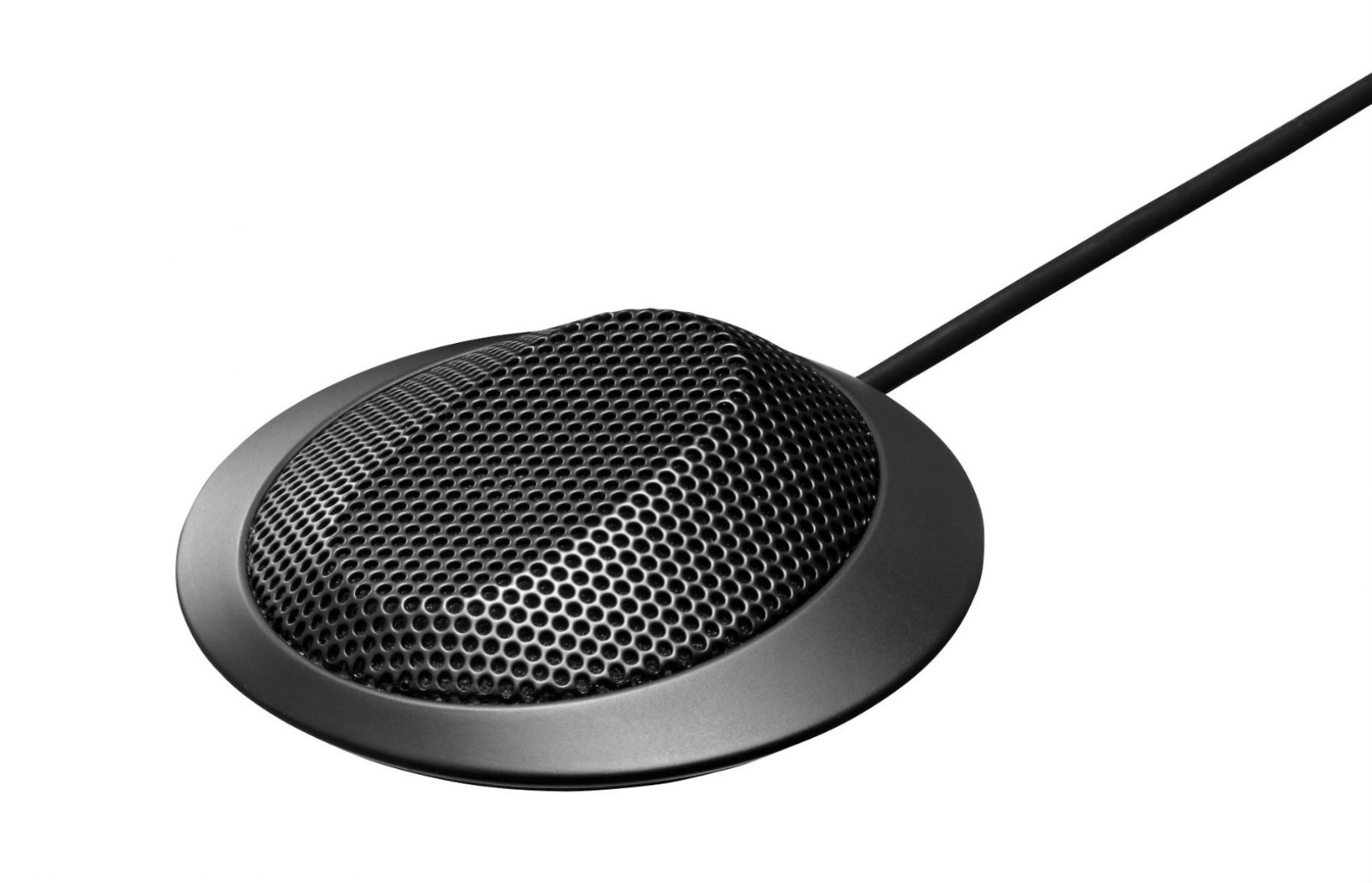

The EM-700 is a low-profile, high-quality, cardioid condenser microphone suitable for installation on a lecture desk or table top in a conference room. It features optimum acoustic characteristics for sound pick-up applications when placed on a flat surface, realizing pure, natural sound quality.


Element Electret condenser
Polar Pattern Cardioid
Rated Impedance 120 Ω, balanced
Rated Sensitivity -33 dB (1 kHz 0 dB=1 V/Pa)
Phantom Power 9 - 52 V DC
Frequency Response 35 Hz - 20 kHz
Low Cut 100 Hz, -12 dB/oct
Output Connector XLR-3-12 equivalent
Cord Length 7.5 m (24.61 ft)
Operating Temperature 0 to +40 (32 bF to 104 bF)
Finish Body: Die-cast aluminum, black, mat finish, paint
Punched net: Surface-treated steel plate, black, mat finish, paint
Dimensions 83 (W) × 23 (H) × 83 (D) mm (3.27' × 0.91' × 3.27') (cord excluded)
Weight 290 g (0.64lb)
