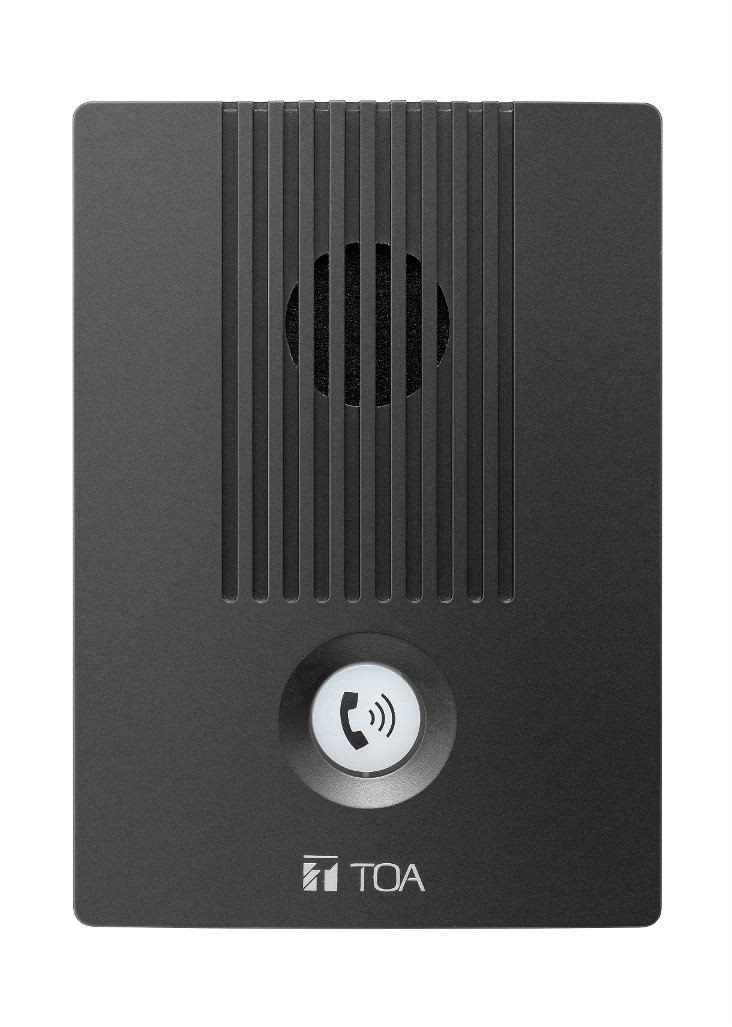

N-8650DS.IP Indoor Station

The N-8650DS is an indoor use IP door station employing packet audio technology. Connecting the N-8650DS to an IP network (LAN or WAN) permits hands-free conversation of high sound quality to be made between the N-8650DS and the intercom station connected to the IP Intercom Exchange, or between the N-8650DS and an IP multifunctional master station. Besides, the N-8650DS can be used in conjunction with the Multi Interface units through a network. The N-8650DS is equipped with 1 channel of control input, 5 channels of control outputs (including 1 channel of relay control output), and speaker output, thereby enabling connections of external equipment such as a sensor, indicator, and external speaker.


Power Source Power supply device that complies with IEEE802.3af standard or
12 V DC (supplied from the AC adapter (option))
Power Consumption Use of the AC adapter (12 V DC): 3.5 W (station only), Use of the PoE (48 V DC): 5 W
Speech Method Hands-free conversation
Audio Frequency Range 300 Hz - 7 kHz
Hands-free Speaker: 3.5 cm (1.38') cone-type, maximum output 0.5 W, 8 Ω
Microphone: Omni-directional electret condenser microphone
Contact Input 1 channel, no-voltage make contact input, open circuit voltage: 5 V DC,
short circuit current: 10 mA or less, unterminated ends
Contact output Open collector output, 4 channels, withstand voltage: 30 V DC,
control current: Max. 50 mA (4 output 1COMMON), unterminated ends
Relay contact output, 1 channel, withstand voltage: 30 V DC,
control current: Max. 500 mA, unterminated ends
External Speaker Terminal Maximum output 0.5 W, 8 Ω, unterminated ends
Network Section Network I/F: 10BASE-T/100BASE-TX (Automatic-Negotiation)
Network protocol: TCP/IP, UDP, HTTP, RTP, ARP, ICMP, IGMP
Audio packet transmission system: Unicast, Multicast
Number of paging destinations: 0, *Reception only
Connector: LAN: RJ45 connector (PoE compatible)
Voice sampling frequency: 16 kHz, 8 kHz (controllable on the software)
Quantifying bit number: 16-bit
Voice encoding method: Sub-band ADPCM, Cryptosystem
Voice packet loss recovery: Silence insertion
Audio delay time: 80 ms, 320 ms (controllable on the software)
Indication Status lamp (built in the Call button)
Installation Method Flush-mount/Surface-mount
Operating Temperature -10 to +50 (14 bF to 122 bF)
Operating Humidity 90 %RH or less (no condensation)
Finish ABS resin, dark gray
Dimensions 117.2 (W) × 162 (H) × 60 (D) mm (4.61' × 6.38' × 2.36')
Weight 400 g (0.88 lb)
Accessory Box mounting screw (No.6-32UNC × 20) …4, Box mounting screw (M4 × 20) …4, LAN coupler …1
Option AC adapter: AD-1210P, AD-1215P
Applicable Box For wall mount: Wall-mount Box YS-13A (option)
For flush mount: 3-gang electrical box or Back Box YC-150 (option)
