RS-140.IP Intercom Switch Panel

     PA/Sound System ---    TOA    ---

Previous ‹‹ » Next

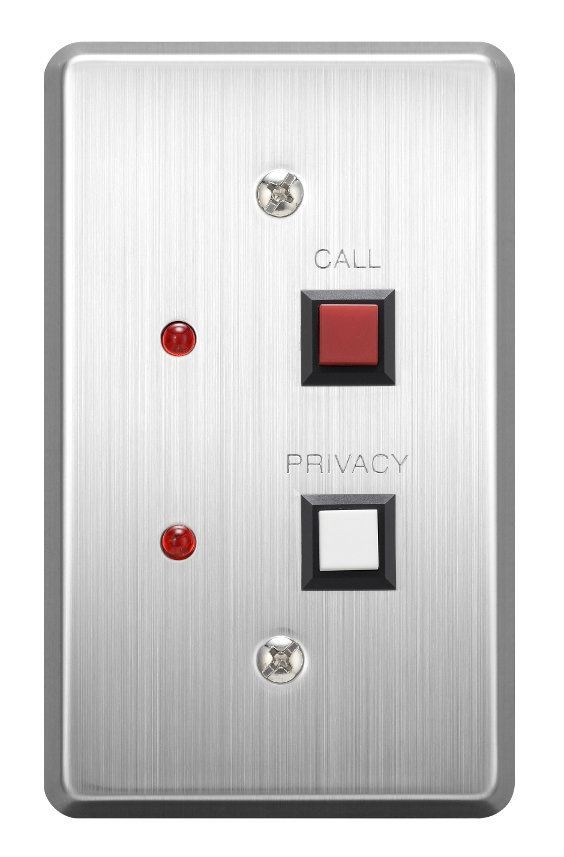

RS-140.IP Intercom Switch Panel

The RS-140 is a switch panel designed for use with the N-8000RS or N-8010RS 2-Core Shielded Substation Interface Unit. It is equipped with a Call button and a Privacy button, and can be installed in a 1-gang electrical box. By connecting a high impedance speaker to it, hands-free conversation with the master station can be made through its speaker. Also, it can be used in connection with the RS-141 Ip Intercom Option Handset.

Specifications:

Call Button Momentary
Privacy Button Latching
Indicator When called : Status indicator (red) flashing
In conversation : Status indicator (red) lit
In privacy : Privacy indicator (red) lit
Wiring Two-core shielded cable
Transmission Range 0.5 km (546 yd)/φ0.5 mm (AWG24)
0.8 km (874 yd)/φ0.65 mm (AWG22)
1.3 km (1421 yd)/φ0.9 mm (AWG19)
Operating Temperature 0 to +40 (32 bF to 104 bF)
Finish Plate: Stainless steel, hairline
Call Button: resin, red
Privacy Button: resin, white
Dimensions 70 (W) × 115 (H) × 28.6 (D) mm (2.76 × 4.53' × 1.13')'
Weight 80 g (0.18 lb)
Accessory Mounting bracket ……1, bracket mounting screw (No.6-32UNC × 18) ……2,
Box mounting screw (M4 × 30) ……2,
Box mounting screw (No.6-32UNC × 30) ……2
Applicable Box Flush-mount box: YC-801 (option)
Wall-mount box : YC-802 (option)



Brochure : https://cdn1.npcdn.net/attachments/1459315773202682832699fcf4c95997246578074f.pdf
