enquiry@asip.com.myTS-919B1.Bridge Unit
PA/Sound System --- TOA ---
| Previous ‹‹ | » Next |

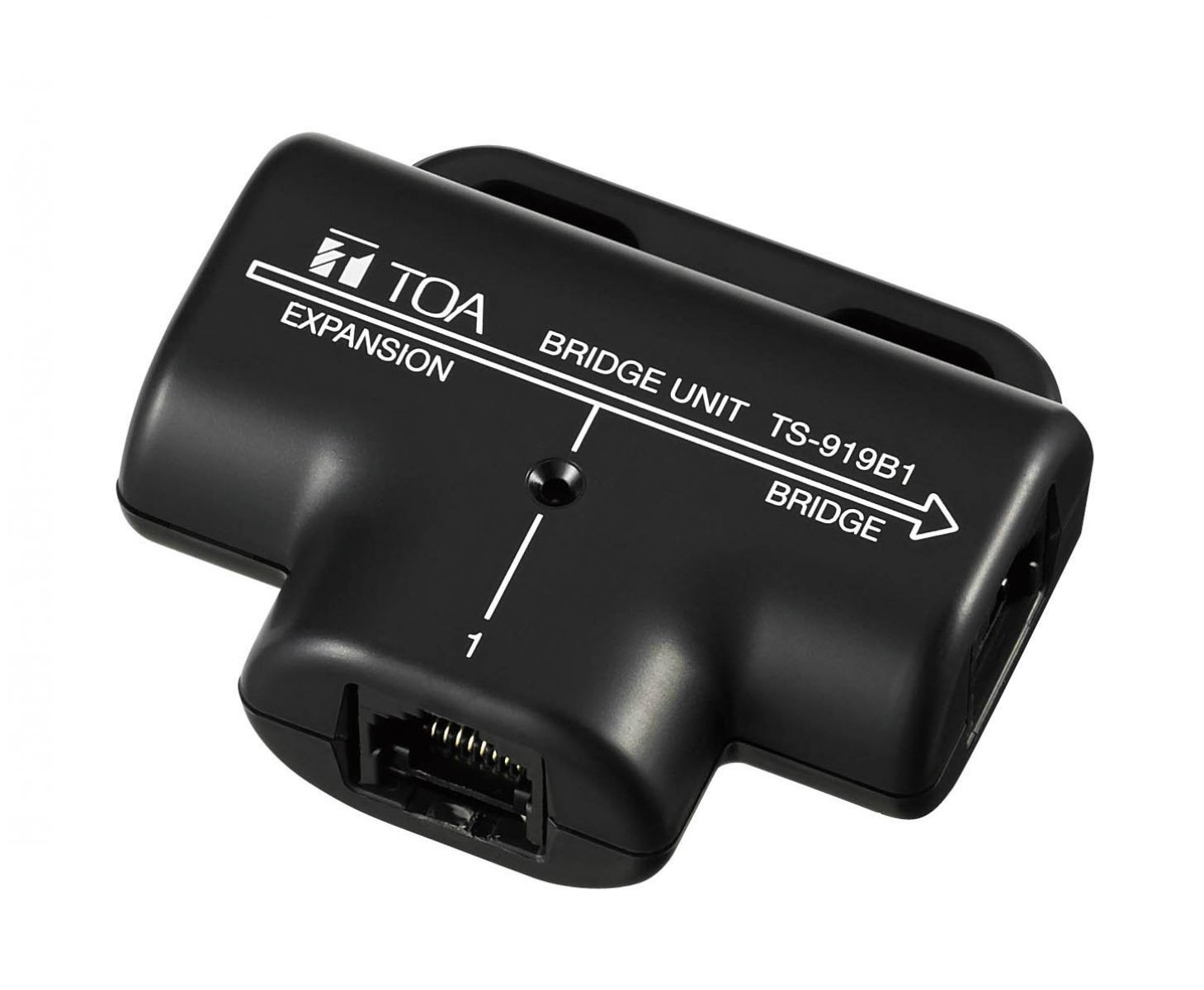

The TS-919B1 is a Bridge unit for connecting a single Wired Conference unit of the TS-811, TS-911, TS-812, or TS-912. It connects to the conference unit with a Category 5 cable.
Specification:
| Power Source | 24 V DC (supplied from the TS-918 Expansion Unit (option)) |
| Current Consumption | Max. 16 mA |
| Branching loss |
Upstream: 16.5 dB Downstream: 16 dB |
| Insertion loss |
Upstream: 1 dB Downstream: 0.5 dB |
| Connection Terminal |
Communication cable connection terminal: RJ45 connector × 2 Conference unit connection terminal: RJ45 connector |
| LED Indicator | Connection status indicator |
| Number of Connectable Chairman/Delegate Units | 1 unit |
| Operating Temperature | 0 ¡æ to +40 ¡æ (32 ©bF to 104 ©bF) |
| Operating Humidity | 90 %RH or less (no condensation) |
| Finish | ABS resin, black |
| Dimensions | 68 (W) × 60.3 (H) × 24 (D) mm (2.68' × 2.37' × 0.94') |
| Weight | 40 g (1.41 oz) |
Brochure : https://cdn1.npcdn.net/attachments/1549606218504e5b3e37a2d6bc037b25622e97a6fc.pdf
