TS-912.Delegate Unit

     PA / SOUND SYSTEM ---    TOA    ---

Previous ‹‹ » Next

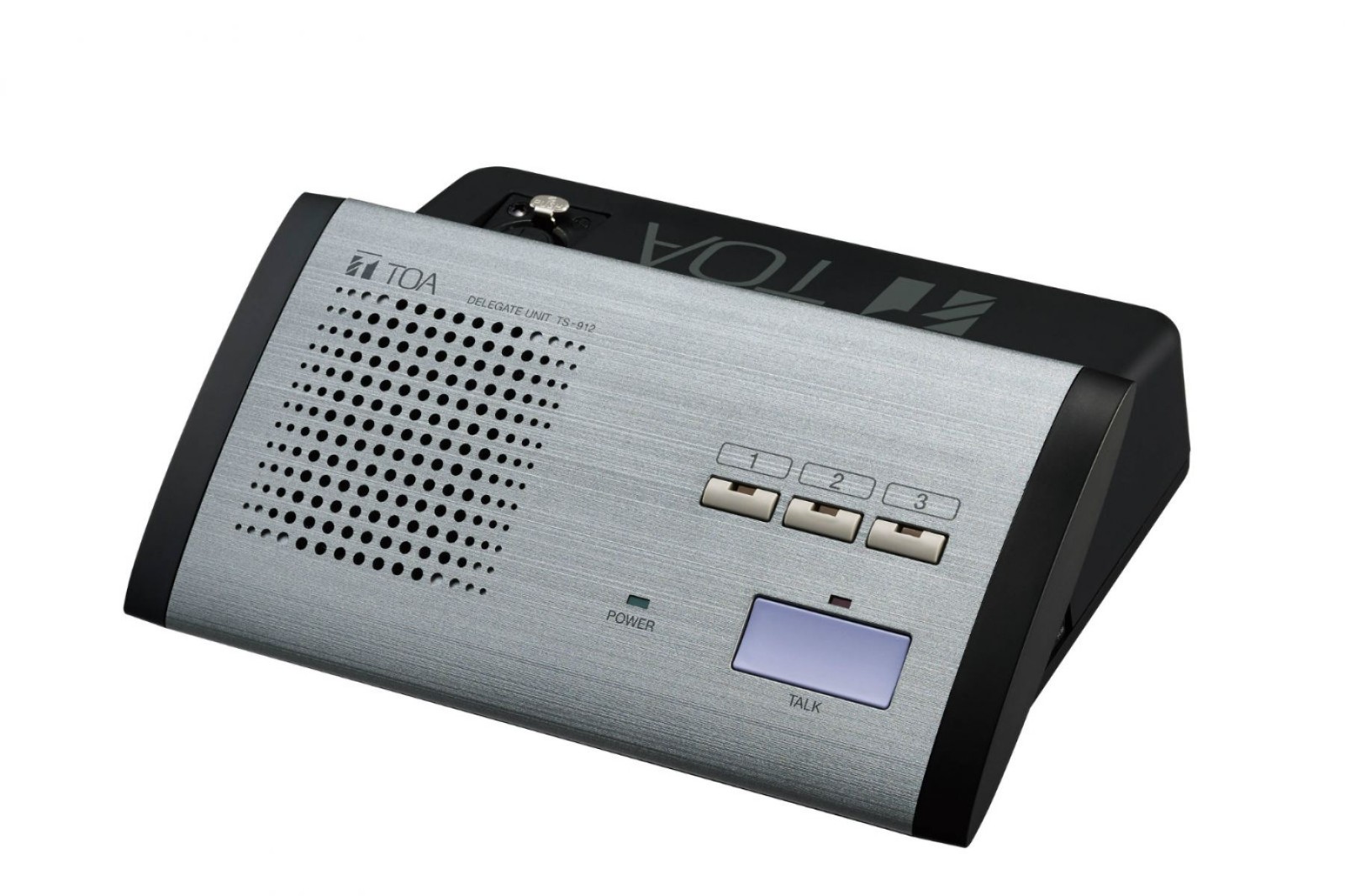

TS-912.Delegate Unit

The TS-912 is a Delegate unit with voting function that can be connected to the conference system by a cable. The TS-912 is directly connected to the TS-919B1 or TS-919B4 Bridge unit, then to the TS-910 Central unit via the TS-918 Expansion unit. Either the standard type or long type can be selected for the microphone


Specification:

Power Source  24 V DC (supplied from the TS-918 Expansion Unit (option))
Current Consumption Max. 60 mA
Modulation Method Frequency modulation
Carrier Frequency Transmission: Audio channel 1: 7.35 MHz
Audio channel 2: 8.10 MHz
Audio channel 3: 8.55 MHz
Audio channel 4: 9.15 MHz
Control channel: 6.45 MHz
Reception: Base language channel: 1.95 MHz
Translation language channel: 2.25 MHz
Input Microphone terminal: XLR-4-31 type
(dedicated for connecting the optional TS-903 or TS-904)
Output Monitor speaker: 8 Ω, 0.2 W
Headphone: φ3.5 mm mini Jack (3P:monaural) × 2
Connection Terminal RJ45 connector
LED Indicator Speech indicator (flashes at communication failure),
Voting status indicators 1 -3, Power indicator (flashes at communication failure)
Function Monitor volume control, Headphone volume control, Voting function,
Monitor selector switch (MAIN/SUB)
Operating Temperature 0 to +40 (32 bF to 104 bF)
Operating Humidity 90 %RH or less (no condensation)
Finish Top panel: ABS resin, gray metallic, paint, semi-gloss
Dimensions 210 (W) × 68.6 (H) × 152 (D) mm (8.27' × 2.7' × 5.98')
Weight 570 g (1.26 lb)
Option Microphone: TS-903, TS-904 (Select either one.)





Brochure : //www.newpages2u.com/attachments/1549605815504e5b3e37a2d6bc037b25622e97a6fc.pdf
