A-5012.Digital Mixer Amplifier

     PA/Sound System ---    TOA    ---

Previous ‹‹ » Next

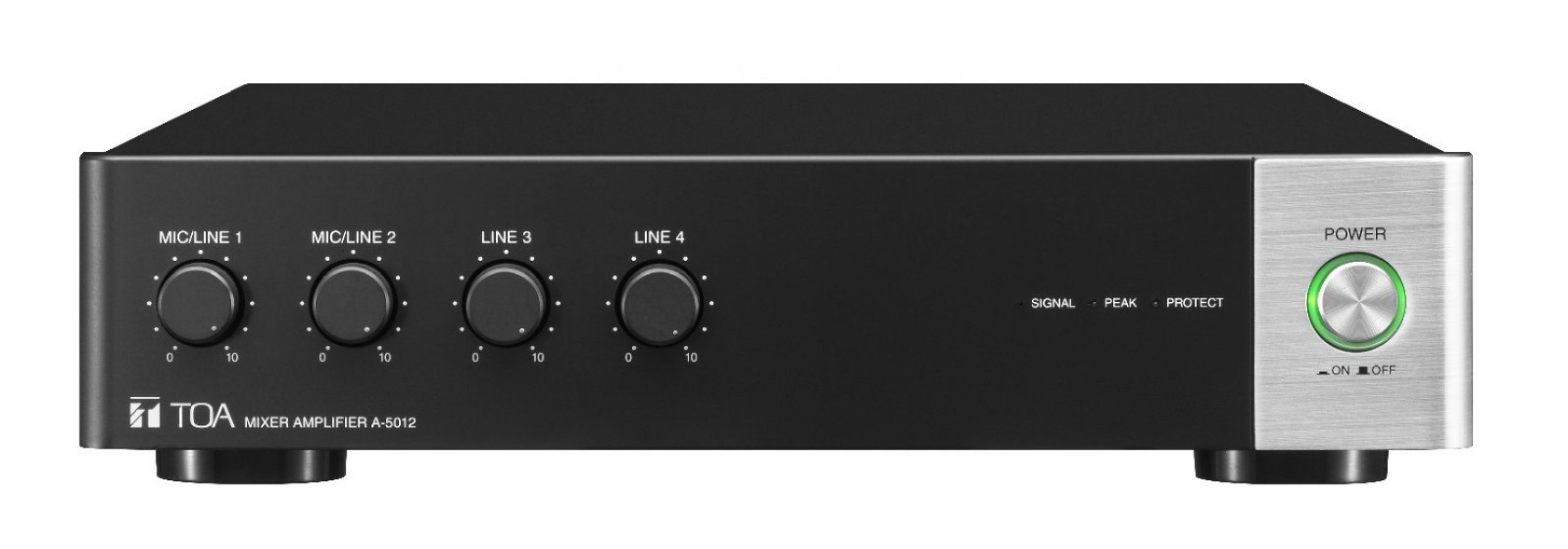

A-5012.Digital Mixer Amplifier

The A-5012 is a half-rack 1-unit size 120 W desktop mixer power amplifier. Inputs 1 and 2 can be set for either MIC or LINE sound sources, and its output is compatible with both high-impedance (100 V and 70 V lines) and low-impedance (4 Ω) speaker connections. Functions can be set with a PC using the dedicated setting software. The A-5012 is ideal for use as a power amplifier in small commercial facilities and conference rooms. With the use of an optional rack mounting bracket, it can be mounted in an EIA Standard equipment rack (1 unit size).

Specification:


Power Source
100-240 VAC, 50/60 Hz
Rated Output 120 W
Power/CurrentConsumption
207 W (rated output), 39 W (based on cULus standards)
Max. 3 A
Frequency Response 50 Hz - 20 kHz (1/8 rated output)
Distortion 1 % or less (1 kHz, rated output)
Input
INPUT 1, 2: MIC -60 dB(*1)
LINE -20 dB(*1) MIC/LINE selectable
2.2 kΩ, electronically-balanced, removable terminal block (5 pins)
INPUT3, 4: LINE -20 dB(*1), 10 kΩ, unbalanced, RCA pin jack
Output SPEAKER: 4 Ω, 70 V (42 Ω), 100 V (83 Ω), removable terminal block (5 pins)
Signal to Noise Ratio
MIC 1, 2: 50 dB or more
LINE 1 - 4: 70 dB or more
(A-weighted)
Function
Parametric equalizer: 5 points settable on each input and output
20 Hz - 20 kHz ±15 dB
Q: 0.267 - 69.249
Compressor: ON/OFF settable on Inputs 1 and 2 (OFF by default)
Threshold, Ratio, Attack time, Release time, and Gain are settable
independently on each input.
Control Mute control, Remote master volume control, Power ON/OFF switch, Ground lift
LED Indicator
Power indicator, Signal indicator, Peak indicator, Protect indicator
Network I/F 100BASE-TX
Operating Temperature 0 to +40 (32 bF to 104 bF)
Operating Humidity 35 % to 80 %RH (no condensation)
Finish
Panel: PS resin, black
Case: Surface-treated steel plate, black, paint
Dimensions 210 (W) × 52.5 (H) × 375 (D) mm (8.27 × 2.07' × 14.76')'
Weight 3.9 kg (8.6 lb)
Accessory CD (setting software) …1, Large type removable terminal plug (5 pins) …1, Small type removable terminal plug (5 pins) …2, Plain washer (*2) …6, Bracket mounting screw (M3 x 10) (*2) …6, Power supply cord (2 m (6.56 ft)) …1
Option
Half width blank panel: MB-15B-BK (for rack mounting one A-5012 unit) (*2)
Rack joint bracket: MB-15B-J (for rack mounting two A-5012 units) (*2)
Rack runner: YA-706


Brochure: https://cdn1.npcdn.net/attachments/1548322184316583f8dda74858c584809fb1eb9260.pdf
