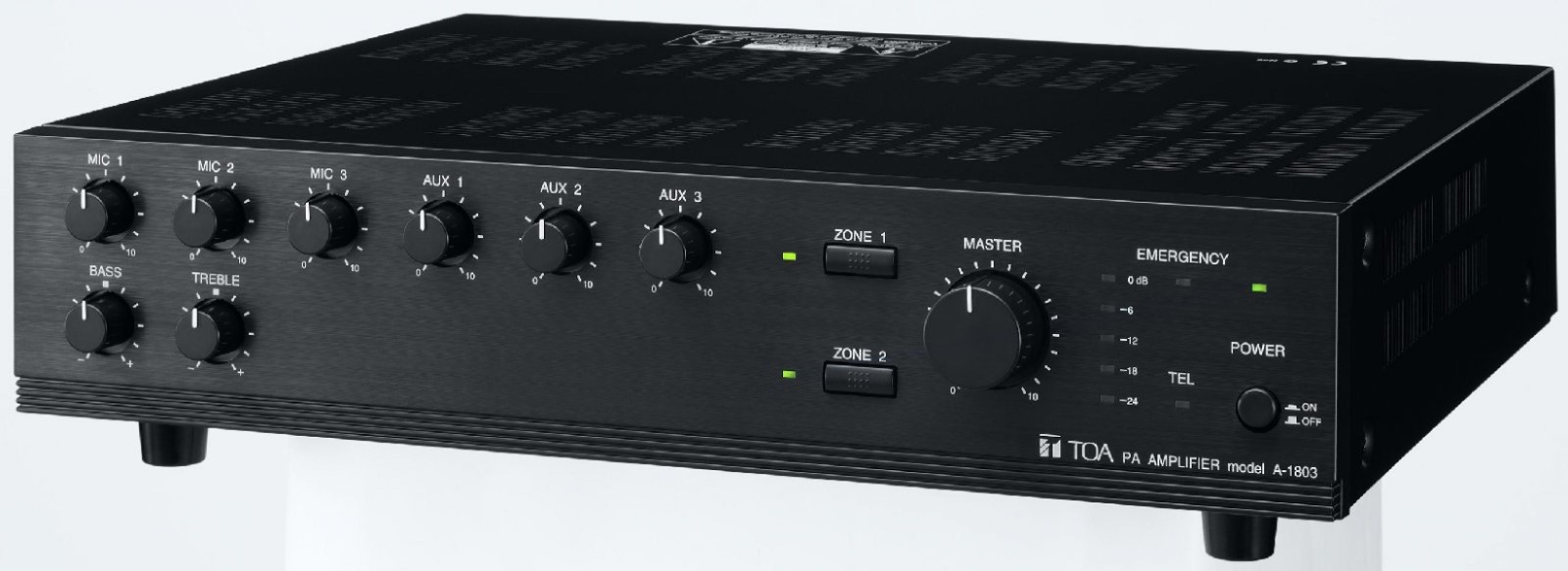

enquiry@asip.com.myA-1806.Mixer Power Amplifier
PA/Sound System --- TOA ---
| Previous ‹‹ | » Next |
Specification:
| Power Source |
220 V - 230 V AC, 50/60 Hz
24 V DC (M4 screw terminal)
|
| Rated Output | 60 W |
| Power/Current Consumption |
AC operation: 158 W (rated output), 66 W (EN60065),
24 V DC operation: 3.8 A (rated output), 1.6 A (EN60065)
|
| Frequency Response | 50 Hz - 20 kHz (±3 dB) |
| Distortion | 2 % or less at 1 kHz, rated power |
| Input |
MIC 1: -60 dB(*1), 600 Ω, electronically-balanced,
combined type of XLR-3-31 equivalent and phone jack, DIN socket (5 pins)
MIC 2 - 3: -60 dB(*1), 600 Ω, electronically-balanced,
combined type of XLR-3-31 equivalent and phone jack
AUX 1 (MOH): -20 dB(*1), 10 kΩ, unbalanced, RCA pin jack
AUX 2: -20 dB(*1), 10 kΩ, unbalanced, RCA pin jack
AUX 3: -20 dB(*1), 10 kΩ, unbalanced, combined type of XLR-3-31 and phone jack
TEL(*2): -20 dB(*1), 10 kΩ, electronically-balanced, M3 screw terminal
EMERGENCY: 0 dB(*1), 600 Ω, unbalanced, M3 screw terminal
|
| Output |
REC: 0 dB(*1), 600 Ω, unbalanced, RCA pin jack
LINE 1, 2 (*3): 0 dB(*1), 600 Ω, unbalanced, RCA pin jack
MOH: 0 dB(*1), 600 Ω, transformer balanced, M3 screw terminal
SPEAKER SELECTOR: 2 zone, high impedance (100 V line/167 Ω), individual selector switch,
M4 screw terminal
DIRECT SPEAKER OUT: High impedance (100 V line/167 Ω), M4 screw terminal
Low impedance (4 - 16 Ω), M4 screw terminal
(Both Low and High impedance terminals cannot be used at the same time.)
|
| Phantom Power | ON or OFF for each MIC1 - 3 with switch setting (+17 V DC) |
| S/N Ratio (Band Pass : 20 Hz - 20 kHz) |
100 dB or more (Master volume: min)
76 dB or more (Master volume: max)
60 dB or more (MIC 1 - MIC 3)
76 dB or more (AUX 1 - AUX 3)
90 dB or more (TEL)
96 dB or more (EMERGENCY)
|
| Tone Control | Bass: ±10 dB at 100 Hz, Treble: ±10 dB at 10 kHz |
| Control Input |
TEL: No-voltage make contact input, open voltage: 24 V DC, short-circuit: 5 mA or less,
M3 screw terminal
EMERGENCY(*4): No-voltage make contact input, open voltage: 24 V DC,
short-circuit: 10 mA or less, M3 screw terminal
|
| Control Output |
Power remote: Open collector output, withstand voltage: 35 V DC,
control current: 50 mA or less, M3 screw terminal
|
| Chime |
1-tone, 2-tone, or ascending 4-tone chime, or None selectable with switch setting,
activated at MIC 1's DIN or CONTROL TEL terminal.
|
| Indicator |
5 point LED output level meter, Power indicator LED, Zone indicator LED, Emergency LED,
TEL LED
|
| Priority |
EMERGENCY: Overrides other inputs
TEL: Overrides other inputs except 'EMERGENCY', ON/OFF selectable with switch setting
MIC 1: Overrides other inputs except 'EMERGENCY & TEL',
ON/OFF selectable with switch setting
|
| Operating Temperature | -10 ℃ to +40 ℃ |
| Finish |
Panel: ABS resin, black, hairline
Case: Steel plate, black
|
| Dimensions | 420 (W) × 107.7 (H) × 367 (D) mm |
| Weight | 9.4 kg |
| Accessory | Power cord ……1, Terminal block cover ……1, Terminal block cover mounting screw ……2 |
| Option |
Rack mounting bracket: MB-25B
Volume control cover: YA-920
Input transformer: IT-453A
|
