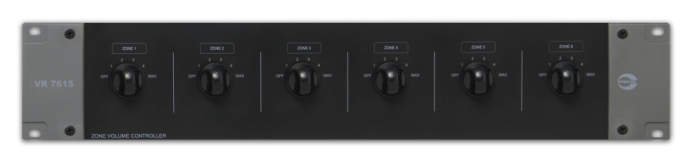

VR7600.SERIES RACK MOUNT ZONE VOLUME CONTROLLERS


The rack mounted versions are meant for installation at central rack. allowing zone by zone volume attenuation.Standard versions are 6 x 50, 6 x 100 and 6 z 150W per channel. If combinations of wattage is required, it can be customised upon ordering.

Specifications:



  VR7605 VR7610 VR7615
Power rating (W - 100V line) 50W 100W 150W
Overriding voltage 24V DC
Overriding current 15 mA per channel
Attenuation 6 steps including OFF
Attenuation / step 6 dB / step
Attenuation method Auto transformer
Size ( WxHxD ) mm 482 x 88 x 60 mm
Weight ( kg ) 3.4 4.5 4.6





Brochure : https://cdn1.npcdn.net/attachments/1550212404504e5b3e37a2d6bc037b25622e97a6fc.pdf
