CH700 Series.20 / 30 / 40W 100V Line Column Speaker

     PA/Sound System ---    AMPERES    ---

Previous ‹‹ » Next

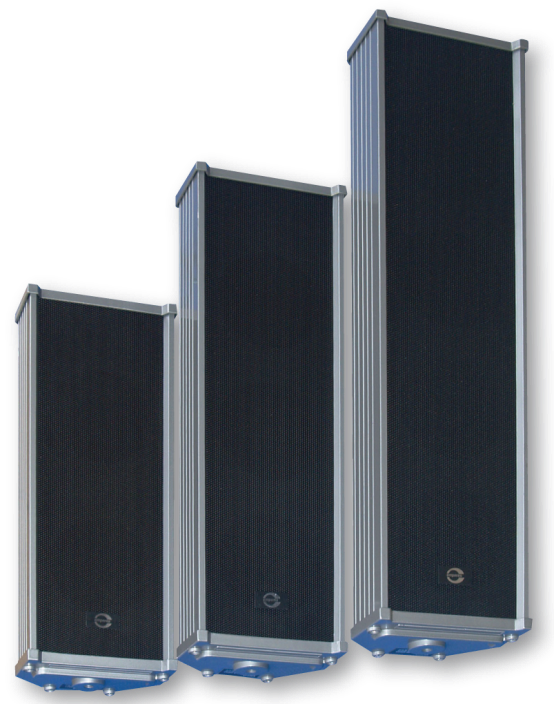

CH700 Series.20 / 30 / 40W 100V Line Column Speaker

The classic version of CH700 Series comprises of 3 ratings ; 20, 30 and 40W 100V Line has been a rugged performer for decades and are still serving the PA needs, for its clarity.


Specifications:



SPEAKER
CH720 CH730 CH740
Power rating 20W 100V 30W 100V 40W 100V
Diameter
2 x 4' 3 x 4' 4 x 4'
Cone type Dual cone
Impedance 8 Ohm
Freq response (+/- 5dB) 80 - 15 KHz 80 - 15 KHz 75 - 15 KHz
SPL @ 1W/m, ( +/- 3dB ) 1 KHz
91 dB
93 dB 95 dB
Magnet weight 7.5 oz

TRANSFORMER
Tappings (100V Line )
10 / 20W
15 / 30W 20 / 40W
Primary impedance (Ohm)
1K / 500 Ohm
660 / 330 Ohm
500 / 230 Ohm
Secondary impedance
8 Ohm


MECHANICAL
Grille / enclosure Aluminum / metal grille
Overall size (WxHxD) mm 145 x 400 x 100 145 x 495 x 100 145 x 605 x 100
Weight 3.2 kg 3.7 kg 4.6 kg
Colour Dark grey / front black grille






Brochure : https://cdn1.npcdn.net/attachments/1550135201504e5b3e37a2d6bc037b25622e97a6fc.pdf
