FS338.2 x 4" 40W 100V Line Foreground Music Speaker

     PA/Sound System ---    AMPERES    ---

Previous ‹‹ » Next

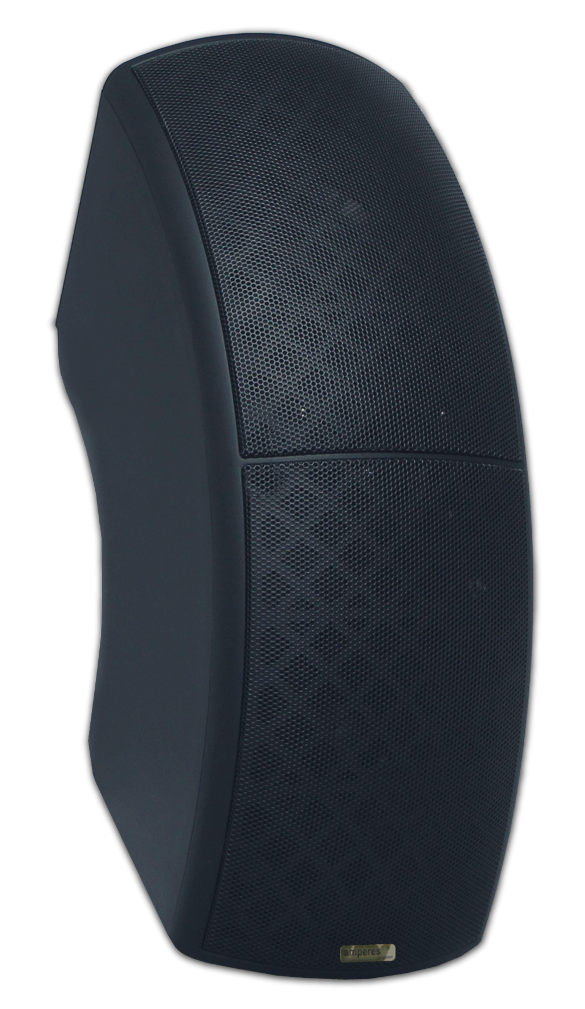

FS338.2 x 4" 40W 100V Line Foreground Music Speaker


FS338 is a multi purpose speaker, suitable for background music as well as speech. It is driven by dual 4' speakers arranged in curved enclosure, providing better vertical coverage, for both near and far.It is rated 40W 100V line with rotary power selector ranging from 5 to 40W and also 4 Ohm connection for other conventional power amplifiers.Standard installation is vertical format, but if 360 degree coverage is required, they can be assembled using special bracket, providing circular array, which is usually used in large venues such as hyper market, indoor stadium, etc.

Specifications:



SPEAKER

Power rating 40W 100V max 60W
Driver 2 x 4', 1' PZ tweeter
Diameter 4' x 2
Cone type Single cone
Impedance 8 Ohm
Freq response (+/- 5dB) 70 ~ 16 KHz
SPL @ 1W/m, ( +/- 3dB ) 1 KHz 87 dB

TRANSFORMER
Tapping (100V line) 5 / 10 / 20 / 40W / 4
Primary impedance (Ohm) 2 K / 1 K / 500 / 250 / 4
Secondary impedance 4 Ohm

MECHANICAL
Grille / enclosure Black metal / ABS
Mounting Vertical / Horizontal
Overall size (WxHxD) mm 137 x 385 x 262
Weight 3.4 kg
Colour Black





Brochure : https://cdn1.npcdn.net/attachments/1550131081504e5b3e37a2d6bc037b25622e97a6fc.pdf
