CL900 Series.Slim Line Column Speakers

     PA/Sound System ---    AMPERES    ---

Previous ‹‹ » Next

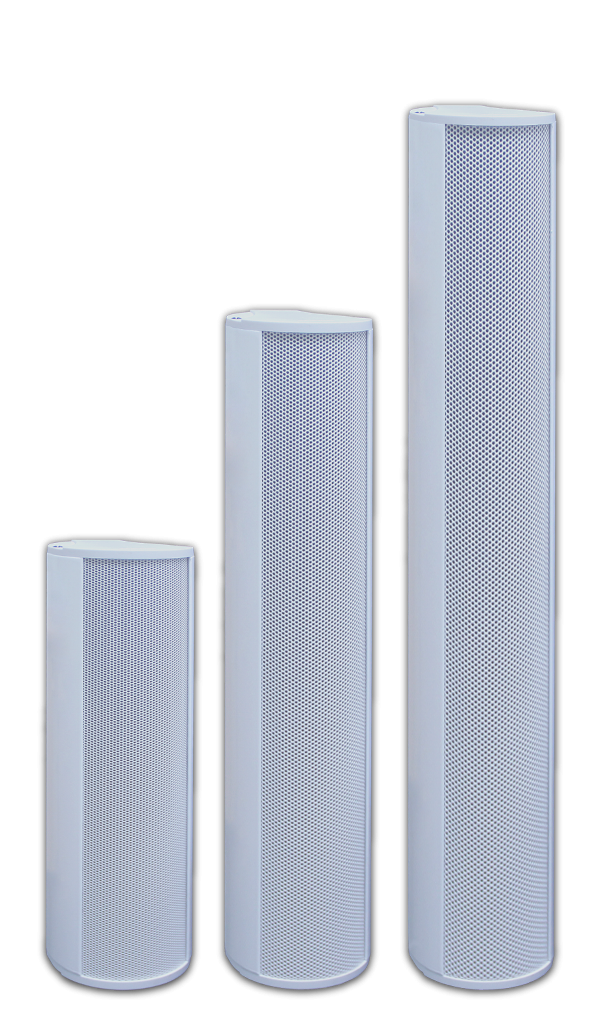

CL900 Series.Slim Line Column Speakers


CL900 Series of column speakers are available in variants of 10, 20, 40 and 60W 100V lines, featuring slim profile with 2' powerful driver.Standard colour is white but black is available upon request.

Specifications:



SPEAKER
CL904 CL908 CL912
Power rating 20W 100V 40W 100V 60W 100V
Line Voltage 100V
Transformer Tapping (100V) 10W / 20W 30W / 40W 50W / 60W
Primary Impedance (Ohm) 1k Ω / 500 Ω 330Ω / 250Ω 200Ω / 166Ω
Sensitivity (1m / 1w) 87 ± 3dB 88 ± 3dB 89 ± 3dB
Frequency Response 230 - 16 KHz
Dimension (mm) 350 x 79 x 89 567 x 79 x 89 782 x 79 x 89
Material Aluminum
Weight with Bracket (kg) 1.4kg 2.35kg 3.2kg
Speaker Unit 4 x 2' 8 x 2' 12 x 2'





Brochure : https://cdn1.npcdn.net/attachments/1550135201504e5b3e37a2d6bc037b25622e97a6fc.pdf
