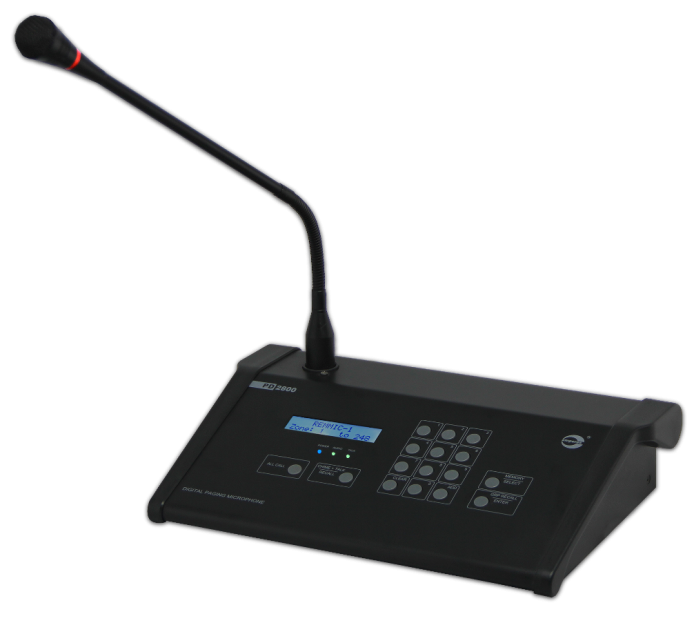

PD2800 [ DIGITAL PAGING MICROPHONE ]

     PA/Sound System ---    AMPERES    ---

Previous ‹‹ » Next

PD2800 [ DIGITAL PAGING MICROPHONE ]






Power requirement
24V DC 1A via adaptor to EX2800
Power consumption 0.42A
Microphone Condenser microphone ; cardioid
Zoning capacity 256
Zone storing capacity 108
Grouping capacity 9 groups ; each to store 12 zones
Output impedance 600 Ohm balanced
Output level Line  1.2V
Output controls Chime and mic level
Chime 2 or 4 tones ; assignable
Frequency response 100 - 12 KHz
S/N ratio > 60 dB at 1 KHz
Data output RS485 ; 19.2 KBs
Data connection RJ45 to EX2800 via Cat 5E / 6 cable
Compatible decoder TD6240
Operation distance Up to 1000m (sub. to cable size)
Memory duration 1 year (internal battery)
Gooseneck mic length 400 mm
Dimension (WxHxD) 292 x 62 x 186 mm
Weight 1.3 kg (excl. adaptor)
