CM1400.Chime / Siren Tone Unit

     PA/Sound System ---    AMPERES    ---

Previous ‹‹ » Next

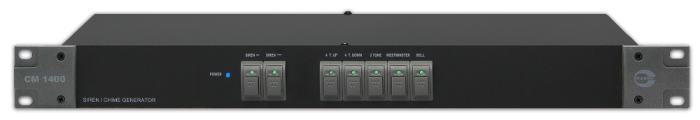

CM1400.Chime / Siren Tone Unit


CM1400 offers 5 types of chime and 2 siren tones and can be triggered from front panel switches or from the rear contact points. its output has balanced and unbalanced selection.It is suitable for installation in schools, factories etc.Customised tones are available if require.

Specifications:


Operating voltage
24V DC ; 0.5A
Power consumption 0.3A
Chime type
  • 4 tone up, 4 tone down, 2 tone
  • Ringing bell, Westminster
Siren type
  • Constant siren 8 KHz
  • Wavy siren
External activation Dry contact
Output Line 1V
Output impedance 10 K unbalanced
Gain +4 dB max
Dimensions (WxHxD) 482 x 44 x 180 mm
Weight 1.55 kg




Brochure : https://cdn1.npcdn.net/attachments/1550112009504e5b3e37a2d6bc037b25622e97a6fc.pdf
