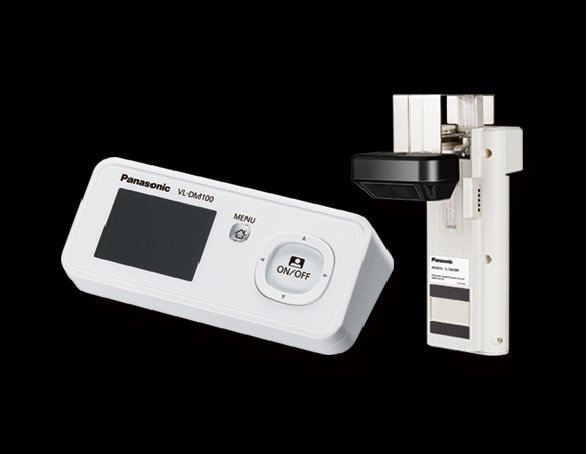

enquiry@asip.com.myVL-SDM100.WIRELESS DOOR CAMERA
Intercom System --- PANASONIC ---
| Previous ‹‹ | » Next |
-
Monitoring
-
Wide angle zooming and panning/tilting
| Monitor |
Power supply
|
100-240 V AC, 50/60 Hz |
| Dimensions (H x W x D) | Approx. 16.5 mm x 126 mm x 59 mm (excluding protruding sections) | |
| Dimensions (H x W x D) | - When using the cradle: Approx. 47 mm x 131 mm x 78 mm (excluding protruding sections) | |
| Weight | Approx. 160 g (including the cradle) | |
| Display | 2.2 type color TFT LCD monitor | |
| Wireless transmission method | 1.9 GHz TDMA-WB | |
| Transmission frequency | 1881.792 MHz - 1897.344 MHz | |
| Transmitting range Approx | 70 m (line-of-sight distance) | |
| Talking method |
N/A
|
|
| Operating temperature | 0 °C to 40 °C | |
| Wireless Camera |
Power supply
|
Alkaline LR battery x 4 |
| Battery life | Battery save mode on:Approx. 6 months (*)(**) | |
| Battery life |
Battery save mode off (Default):Approx. 4 months (*)(**)
|
|
| Battery life | (*) When used 5 times a day (displaying images for about 20 seconds each time) at a temperature of 20 °C | |
| Battery life | (**) Under the condition of using with Panasonic alkaline batteries | |
| Dimensions (H x W x D) | Wireless unit: Approx. 190 mm x 78 mm x 58 mm (excluding protruding sections) | |
| Dimensions (H x W x D) | Camera unit: Approx. 37 mm x 87.5 mm x 40 mm (excluding protruding sections) | |
| Weight | Approx. 390 g (excluding batteries) | |
| Installation method | Attached to a door | |
| Wireless transmission method |
1.9 GHz TDMA-WB
|
|
| Transmission frequency | 1881.792 MHz - 1897.344 MHz | |
| Minimum illuminance | 3 lx | |
| Water resistant proprieties | IPx3 equivalent (camera unit) | |
| Water resistant proprieties | (IPx3 specifies protection against directly sprayed water from a vertical direction to 60 degrees from both sides) | |
| Viewing angle |
Horizontal: Approx. 120° Vertical: Approx. 90°
|
|
| Transmitting range | Approx. 70 m (line-of-sight distance) | |
| Operating temperature | Wireless unit (indoor use) 0 °C to 40 °C Camera unit (outdoor use) -10 °C to 50 °C |
