VL-SDM200.WIRELESS DOOR CAMERA

     Intercom System ---    PANASONIC    ---

Previous ‹‹ » Next

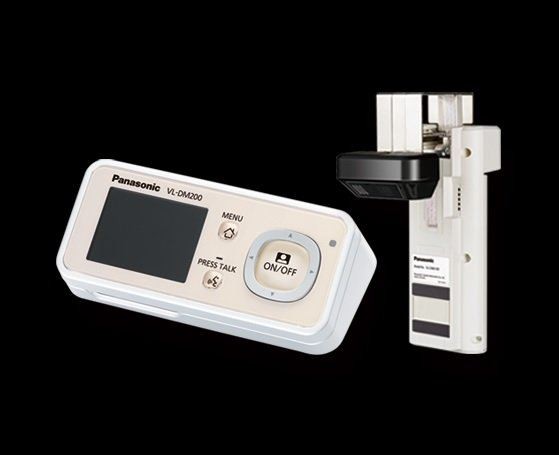

VL-SDM200.WIRELESS DOOR CAMERA

  • Monitoring

  • Two-way Voice Conversation

  • Picture Recording




Monitor
Power supply Lithium ion battery (part number: CGA-LB102)
Power supply Usage time (with continuous use)*
Power supply Monitor: Approx. 2.5 hours
Power supply Standby: Approx. 100 hours
Power supply
*At 20 °C temperature, with a full charged battery
Power supply Charging time: Approx. 6 hours
Dimensions (H x W x D)
Approx. 21 mm x 126 mm x 59 mm (excluding protruding sections)
Dimensions (H x W x D) -When using the base unit: Approx. 51 mm x 132 mm x 79.5 mm (excluding protruding sections)
Weight Approx. 120 g (including the battery pack)
Display 2.2 type color TFT LCD monitor
Wireless transmission method 1.9 GHz TDMA-WB
Transmission frequency
1881.792 MHz - 1897.344 MHz
Transmitting range Approx. 70 m (line-of-sight distance)
Talking method Half-duplex transmission (Press to talk)
Operating temperature 5 °C to 40 °C
Wireless Camera
Power supply
Alkaline LR battery x 4
Battery life Battery save mode on: Approx. 6 months (*)(**)
Battery life Battery save mode off (Default): Approx. 4 months (*)(**)
Battery life (*) When used 5 times a day (displaying images for about 20 seconds each time) at a temperature of 20 °C
Battery life (**) Under the condition of using with Panasonic alkaline batteries
Dimensions (H x W x D) Wireless unit: Approx. 190 mm x 78 mm x 58 mm (excluding protruding sections)
Dimensions (H x W x D)
Camera unit: Approx. 37 mm x 87.5 mm x 40 mm (excluding protruding sections)
Weight Approx. 390 g (excluding batteries)
Installation method Attached to a door
Wireless transmission method 1.9 GHz TDMA-WB
Transmission frequency 1881.792 MHz - 1897.344 MHz
Minimum illuminance 3 lx
Water resistant proprieties IPx3 equivalent (camera unit)
Water resistant proprieties (IPx3 specifies protection against directly sprayed water from a vertical direction to 60 degrees from both sides)
Viewing angle Horizontal: Approx. 120° Vertical: Approx. 90°
Transmitting range Approx.
 70 m (line-of-sight distance)
Operating temperature Wireless unit
  • (indoor use) 0 °C to 40 °C Camera unit
  • (outdoor use) -10 °C to 50 °C
Base Unit Power supply 100-240 V AC, 50/60 Hz
  • Power consumption
  • Power consumption
  • During standby: Approx. 1 W
  • During operations: Approx. 2 W
Power consumption (Unless the wireless monitor is put on the chager)
Power consumption During charging: Approx. 4 W
Dimensions (H x W x D) Approx. 41 mm x 132 mm x 75 mm (excluding protruding sections)
Weight Approx. 125 g
Wireless transmission method 1.9 GHz TDMA-WB
Transmission frequency 1881.792 MHz - 1897.344 MHz
Transmitting range Approx. 70 m (line-of-sight distance)
Operating temperature
5 °C to 40 °C
