PLATO - S

     Door Access System ---    MICROENGINE    ---

Previous ‹‹ » Next

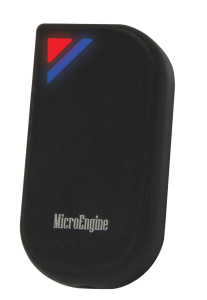

PLATO - S

  • Slim and stylish design
  • Weather proof
  • Using RS485 – longer distance (up to 1km away from controller)
  • EM/ Mifare CSN / CEPAS / Mifare Sector Reading
  • Better security with 16-digit card numbers
  • Not identification by Card Serial Number for Mifare Sector Reading
  • Touch Sense keypad
  • Colour LCD
  • 2 stylish LED indicators
  • Built-in buzzer


Features

Plato-P80KLS

Plato-P80S

Connectivity RS485 RS485
LED indicator Blue and Red Blue and Red
Reader type EM Compatible EM Compatible
Card Digits 16 16
Buzzer Yes Yes
Dimension (H x W x D) mm 90 x 57 x 16 80 x 43 x 16
Epoxy Yes Yes
Weather proof Yes Yes
Reading range Max 7cm Max 7cm
Material
Body – PC
Faceplate – Acrylic
PC
Keypad Yes No
LCD Yes No
Input voltage 12VDC 12VDC
Current (Typical) 180mA at 12VDC 150mA at 12VDC
Operating Temperature 0 – 50 °Celcius 0 – 50 °Celcius






Features

Plato-C80KLS

Plato-C80MS

Plato-C80S

Connectivity RS485 RS485 RS485
LED indicator Blue and Amber Blue and Amber Blue and Amber
Reader type ISO 14443 A/B / Mifare / CEPAS ISO 14443 A/B / Mifare / CEPAS ISO 14443 A/B / Mifare / CEPAS
Card Digits 16 16 16
Buzzer Yes Yes Yes
Card Serial Number Reading (CSN) Yes Yes Yes
Configurable Sector Reading Yes Yes Yes
Dimension (H x W x D) mm 90 x 57 x 16 90 x 57 x 16 80 x 43 x 16
Epoxy Yes Yes Yes
Weather proof Yes Yes Yes
Reading range Max 3cm Max 3cm Max 3cm
Tamper Sensor Yes Yes Yes
Material
Body – PC
Faceplate – Acrylic
Body – PC
Faceplate – Acrylic
PC
Keypad Yes Yes No
LCD Yes No No
Input voltage 12VDC 12VDC 12VDC
Current (Typical) 220mA at 12VDC 200mA at 12VDC 190mA at 12VDC
Operating Temperature 0 – 50 °Celcius 0 – 50 °Celcius 0 – 50 °Celcius
