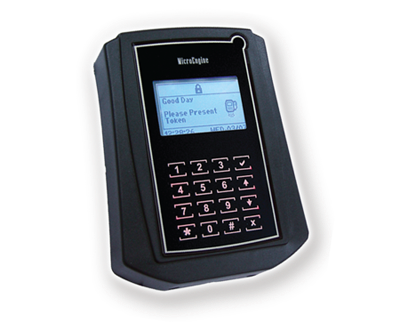

     Door Access System ---    MICROENGINE    ---

Previous ‹‹ » Next


Features Functions
Card User Memory 1,200
Transaction Records 10,000
Single Unit Reader, Keypad & Controller Yes
Build-In Card Reader Yes – EM Card (Mifare Card Model Available)
Access Operation Mode Card Only, PIN Only, Card + PIN
Fingerprint Template Capacity
Display 128 x 64 Graphic Display with Back Light
Keypad Touch Sense Keypad with Backlight
Time Set & Time Zone 99
Holiday Dates 30
Auto PIN Not Available
Built-in Real Time Clock with Battery Yes
Car Park Mode External Entry Reader No
Exit Reader Yes
Exit Push Button Yes – with Time Zone Controles
Support Wiegand 26-bit Reader Yes
Anti-Passback Yes
Controller Operation Mode Access YesControl Mode
Supports Programming Through Keypad
& LCD at the Reader
Lock Control, Door Sensor & Exit Button Input Yes – Through MAS-RBS Located Inside the Door
Configurable Lock Release Time Yes – 0-99 secs.
Configurable Door Open Time Yes – 0-99 secs.
Auto Lock Release Time Zone Yes
Sensor & Output No
Data Flash Memory 32MBit
Onboard Buzzer Yes
Communication Ports RS485 / LAN
Can be Linked to PC for Software Control Yes
Power 12VDC
Dimension 152mm (H) x 122mm (W) x 32mm (D)


  • Reader with Touch Sense Keypad

  • Built-in LCD Screen

  • Built-in Controller & LAN

  • Support Programming through Keypad & LCD at the reader
