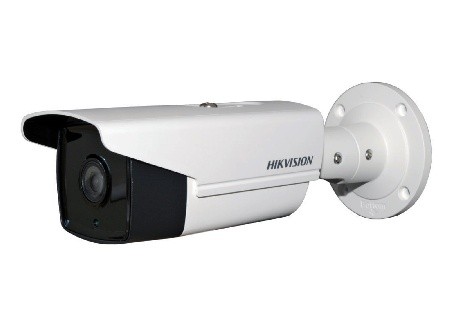

enquiry@asip.com.myDS-2CE16D1T-IT3.1080P TURBO HD EXIR BULLET CAMERA
CCTV System --- HIKVISION ---
| Previous ‹‹ | » Next |
- HD1080P Video Output
- Adopt HDTVI Technology
- True Day/Night, Smart IR
- EXIR technology, 40m IR distance
- IP66 weatherproof
- OSD menu controlled via UTC
| CAMERA | |
| Image Sensor | 2MP CMOS Image Sensor |
| Effective Pixels | 1920(H) x 1080(V) |
| Min. Illumination | 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR |
| Shutter speed | 1 / 25(1 / 30) s to 1 / 50,000 s |
| Lens | 3.6mm, Angle of View: 84.3°(3.6mm), |
| Lens Mount | M12 |
| Angle Adjustment | Pan: 0 - 360°, Tilt: 0 - 90°, Rotation: 0 - 360° |
| Day & Night | IR cut filter with auto switch |
| Video Frame Rate | 1080p@25fps / 1080p@30fps |
| Video Output | 1 Analog HD output |
| S/N Ratio | More than 52 dB |
| MENU | |
| AGC | Support |
| Day / Night Mode | Color / BW / EXT |
| White Balance | Auto/ Manual |
| BLC | Support |
| Language | English/ Chinese |
| Functions | Digital noise reduction, Mirror |
| GENERAL | |
| Working Temperature/Humidity |
-40 °C - 60 °C (-40 °F - 140 °F) Humidity 90% or less (non-condensing) |
| Power Supply | 12V DC |
| Power Consumption | Max. 3.5W |
| Ingress Protection | IP66 |
| IR Range | Up to 40 meters |
| Communication |
Up the coax Protocol: HIKVISION-C(Coaxitron) |
| Dimensions | 86.22×82.05×220.13mm(3.39” ×3.23” ×8.67”) |
| Weight | 430 g (0.95 lb) |
Brochure : https://cdn1.npcdn.net/attachments/1550281266504e5b3e37a2d6bc037b25622e97a6fc.pdf
