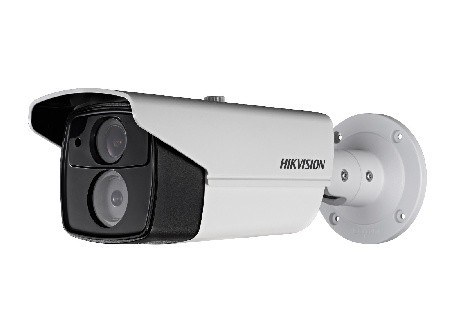

DS-2CE16D5T-VFIT3.1080P TURBO HD WDR EXIR BULLET CAMERA

     CCTV System ---    HIKVISION    ---

Previous ‹‹ » Next

DS-2CE16D5T-VFIT3.1080P TURBO HD WDR EXIR BULLET CAMERA

  • 2 Megapixel high-performance CMOS
  • Analog HD output, up to 1080P resolution
  • 2.8-12mm vari-focal lens
  • True Day/Night, EXIR technology, up to 50m
  • True WDR, up to 120dB
  • IP66 weatherproof
Specifications:

CAMERA
Image Sensor 2MP CMOS Image Sensor
Effective Pixels 1944(H) x 1092(V)
Min. Illumination 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR; 0.014 Lux @ (F1.4,AGC ON),0 Lux with IR
Shutter speed 1/25(1/30)s to 1/50,000s
Lens 2.8 - 12 mm @ F1.4; angle of view: 103°- 32.1°
Lens Mount φ14
Angle Adjustment Pan: 0 - 360°, Tilt: 0 to 90°, Rotation: 0 - 360°
Day & Night IR cut filter
Wide Dynamic Range 120dB
Synchronization Internal Synchronization
Video Frame Rate 1080p @ 30fps / 1080p @ 30fps
Video Output 1 Analog HD output
CVBS Output 1Vp-p composite output (75 Ω/BNC)
S/N Ratio More than 62 dB
MENU
Scene Indoor, outdoor, indoor1, LOW-LIGHT
Camera ID On/off (15 characters, position programmable)
AGC Support
Day / Night Mode Color / BW / EXT
White Balance ATW, AWC-SET, indoor, outdoor, manual
Motion Detection On/off, maximum 4 zones
Privacy Mask 8, selectable color or mosaic
BLC Support
Anti-Flicker On/off
Functions HSBLC (Eclipse), digital noise reduction, digital zoom (62x), slow shutter, mirror, defog, defect pixel correction, SMART D-ZOOM
GENERAL
Working Temperature/Humidity -30° C to 60° C (-22° F to 140° F)
Humidity 90% or less (non-condensing)
Power Supply 12V DC±15%; -A: 12 VDC±15% 24 VAC±15%,
Power Consumption Max. 7W; -A: Max. 10W
Ingress Protection IP66
IR Range Up to 50 meters
Communication Up the coax, Protocol: Pelco-C(CVBS output), HIKVISION-C(TVI output)
Dimensions 300.82 mm × 100.76 mm × 107.55 mm
Weight 1550g




Brochure : https://cdn1.npcdn.net/attachments/1550280791504e5b3e37a2d6bc037b25622e97a6fc.pdf
