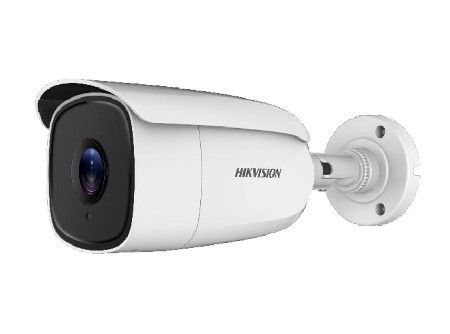

DS-2CE18U8T-IT3.4K ULTRA-LOW LIGHT BULLET CAMERA

     CCTV System ---    HIKVISION    ---

Previous ‹‹ » Next

DS-2CE18U8T-IT3.4K ULTRA-LOW LIGHT BULLET CAMERA

  • 8.29 MP high performance COMS
  • Ultra-low light
  • 3840 × 2160 resolution
  • 2.8 mm, 3.6 mm, 6 mm fixed focal lens
  • 120 dB true WDR, 3D DNR
  • EXIR 2.0, smart IR, up to 460 m IR distance
  • IP67
  • Up the coax (HIKVISION-C)
Specifications:

CAMERA
Image Sensor 8.29 megapixel progressive scan CMOS
Signal System PAL/NTSC
Frame Rate PAL: 8 MP@12.5fps, 5 MP@20fps, 4 MP@25fps, 1080p@25fps
Resolution 3840 (H) × 2160 (V)
Min. Illumination Color: 0.003 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter speed PAL: 1/12.5 s to 1/10,000 s
NTSC: 1/15 s to 1/10,000 s
Slow Shutter Max. 16 times
Lens 3.6 mm
Horizontal Field of View 79° (3.6 mm),
Lens Mount M12
Angle Adjustment Pan: 0 - 360°, Tilt: 0 to 180°, Rotation: 0 - 360°
Day & Night IR cut filter
WDR 120dB
Synchronization Internal Synchronization
MENU
AGC Support
Day / Night Mode Auto/Color/BW (Black and White)
White Balance Auto/Manual/Natural
Privacy Mask ON/OFF, 4 programmable privacy masks
BLC Support
3D DNR Level 1 to 10
Language English
Functions Contrast, Sharpness, Saturation, Mirror, Defog, HLC
TVI Video Output 1 HD analog output
CVBS Video Output 1 CVBS output (75Ω/BNC)
GENERAL
Working Temperature/Humidity -40° C to 60° C (-22° F to 140° F)
Humidity 90% or less (non-condensing)
Power Supply 12V DC ±25%
Power Consumption Max. 4.8W
Ingress Protection IP67
Material Metal
IR Range Up to 60 meters
Communication Up the coax, Protocol: HIKVISION-C(TVI output)
Dimensions Ø 70 mm × 224.7 mm
Weight 630g




Brochure : https://cdn1.npcdn.net/attachments/1550280395504e5b3e37a2d6bc037b25622e97a6fc.pdf
