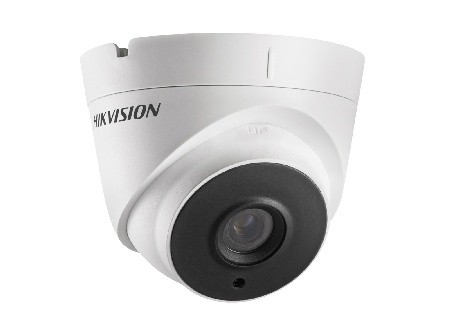

enquiry@asip.com.myDS-2CE56F1T-IT3.3MP TURBO HD EXIR TURRENT CAMERA
CCTV System --- HIKVISION ---
| Previous ‹‹ | » Next |
- 3 Megapixel high-performance CMOS
- Analog HD output, up to 3MP resolution
- OSD menu, DNR, Smart IR
- True Day/Night
- EXIR technology, up to 40m IR distance
- IP66 weatherproof
| CAMERA | |
| Image Sensor | 3MP CMOS Image Sensor |
| Effective Pixels | 2052(H) x 1536(V) |
| Min. Illumination | 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR |
| Shutter speed | 1 / 25(1 / 30) s to 1 / 50,000 s |
| Lens |
3.6mm Angle of View: 67.8°(3.6mm) |
| Lens Mount | M12 |
| Angle Adjustment | Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360° |
| Day & Night | IR cut filter |
| Synchronization | Internal Synchronization |
| Video Frame Rate | 1920x1536@18fps |
| Video Output | 1 Analog HD output |
| S/N Ratio | More than 62 dB |
| MENU | |
| Camera ID | On/off |
| AGC | Support |
| D/N Mode | Color/BW/SMART |
| White Balance | Auto/MWB |
| BLC | Support |
| Funtions | Digital noise reduction, Mirror, SMART IR |
| GENERAL | |
| Working Temperature/Humidity |
-40 °C - 65 °C Humidity 90% or less (non-condensing) |
| Power Supply | 12V DC±15% |
| Power Consumption | Max. 5W |
| Ingress Protection | IP66 |
| IR Range | Up to 40 meters |
| Impact Protection | IK10 |
| Communication | Up the coax, Protocol: HIKVISION-C(TVI output) |
| Dimensions | φ110mm×93.2mm |
| Weight | 350g |
Brochure : https://cdn1.npcdn.net/attachments/1550223279504e5b3e37a2d6bc037b25622e97a6fc.pdf
