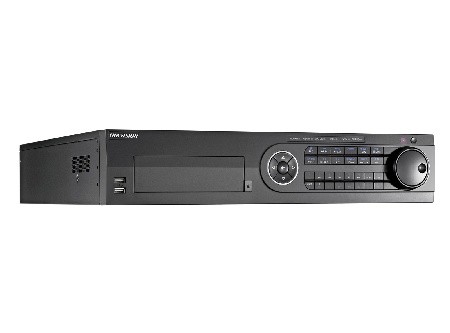

DS-7716NI-E4/16P.16CH EMBEDDED PLUG & PLAY POE NVR

     CCTV SYSTEM ---    HIKVISION    ---

Previous ‹‹ » Next

DS-7716NI-E4/16P.16CH EMBEDDED PLUG & PLAY POE NVR

  • Third-party network cameras supported
  • Up to 5 Megapixels resolution recording
  • HDMI and VGA output at up to 1920×1080P resolution
  • Plug & Play PoE network interfaces
  • Up to 4 SATA interfaces
  • Support network detection, including network delay, packet loss, etc
Specifications:

VIDEO / AUDIO INPUT
IP video input 16CH
Two-way audio input 1-ch, RCA (2.0 Vp-p, 1kΩ)
NETWORK
Incoming bandwidth 100Mbps
Outgoing bandwidth 80Mbps
Remote connection 128
VIDEO / AUDIO OUTPUT
Decoding resolution 5MP / 3MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Frame rate Main stream: 50 fps (P) / 60 fps (N)
Sub-stream: 50 fps (P) / 60 fps (N)
HDMI/VGA output 1-ch, resolution:
1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz
Audio output 1-ch, RCA (Linear, 1kΩ)
DECODING
Live / Playback resolution 5MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Synchronous playback 16-ch@4CIF, 12-ch@720P, 6-ch@1080P
HARD DISK
SATA 4 SATA interfaces for 2 HDDs + 1 DVD-R/W (default), or 4HDDs
eSATA (Optional) 1 eSATA interface
Capacity Up to 4TB for each disk
EXTERNAL INTERFACE
Network interface 2 RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet interfaces
Serial interface RS-232 and RS-485
USB interface 2 × USB 2.0 + 1 × USB 3.0
Alarm in/out 16 / 4 (optionally can be expanded to 16 / 8)
OTHERS
Power supply 100 ~ 240 VAC
Consumption ≤ 20W
Working temperature -10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF)
Working humidity 10 % ~ 90 %
Chassis 19-inch rack-mounted 1U chassis
Dimensions 445 × 390 ×70 mm ( 17.5”× 15.3” × 2.8”)
Weight ≤ 4 Kg (8.82 lb)




Brochure  :https://cdn1.npcdn.net/attachments/1550219618504e5b3e37a2d6bc037b25622e97a6fc.pdf
