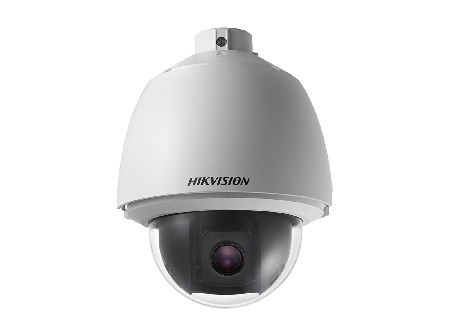

DS-2DE5184-AE.2MP 20X PTZ NETWORK DOME CAMERA

     CCTV System ---    HIKVISION    ---

Previous ‹‹ » Next

DS-2DE5184-AE.2MP 20X PTZ NETWORK DOME CAMERA

  • 1080P Full HD real-time resolution
  • 20x optical zoom, 16x digital zoom
  • True Day/Night, DWDR, 3D DNR
  • Privacy Mask, Alarm Input/Output
  • 3D Intelligent Positioning
  • 24VAC / PoE+ power supply
Specifications:

CAMERA
Image Sensor 1/2.8-inches Progressive Scan CMOS
Effective Pixel 2230K pixels
Min.illumination Color: 0.05Lux@F1.6, AGC ON; B/W: 0.01Lux@F1.6, AGC ON
White balance Auto / manual / ATW / indoor / outdoor
AGC Auto / manual
S/N ratio ≥ 50dB
Image Enhancement 3DNR, BLC, digital WDR
Shutter Speed 1/1 to 1/10,000s
Day/Night IR cut filter
Digital Zoom 16x
Focus Mode Auto/ Semi automatic / Manual
Privacy Mask 2 Privacy mask programmable
LENS
Focal length 4.7 ~ 94mm, 20x
Zoom speed Approx.3s (optical Wide-Tele)
Angle of view 58.3 ~ 3.2° (Wide-Tele)
Min. working distance 10 ~ 1,000mm (Wide-Tele)
Aperture range F1.6 ~ F3.5
PAN AND TILT
Pan range 360° endless
Pan speed Pan manual speed: 0.1° ~ 250° / s, pan preset speed: 300° / s
Tilt range 5° ~ 90° (auto flip)
Tilt speed Tilt manual speed: 0.1° ~ 150° / s, tilt preset speed: 200° / s
Proportional zoom Rotation speed can be adjusted automatically according to zoom multiples
Number of preset 256
Patrol 8 patrols, up to 32 presets per patrol
Pattern patterns, with the total recording time not less than 10 min
Power loss recovery Support
Park action Preset / patrol / pattern / pan scan / tilt scan / random scan / frame scan / panorama scan
PTZ position display On / off
Freeze frame Support
INPUT / OUTPUT
Alarm input / output 1 mic/line in, 2 to 2.4V(p-p); output impedance: 1KΩ 1 output, line level, impedance: 600Ω
Alarm input / output 1 inpt(0 to 5VDC) / 1 relay output, alarm response action configurable
Alarm action Preset / patrol / pattern / pan scan / tilt scan / random scan / frame scan / panorama scan / relay output
NETWORK
Ethernet 10Based-T / 100Based-TX, RJ45 connector
Max. Image Resolution 1920×1080
Frame Rate 50Hz: 25 fps (1920×1080), 25 fps (1280×960) , 25 fps (1280×720)
Image Compression H.264 / MJPEG
SVC Supported
ROI Compression Support 2 areas with adjustable levels
Audio Compression G.711u / G.711a / G.726 / MP2L2
Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP,IGMP, ICMP, DHCP, PPPoE
Simultaneous Live Views 6 Users
Streams Dual Stream
SD Memory Card Micro SD slot, up to 32GB
User / Host Level Up to 32 users, 3 levels: Administrator, Operator, User
Security User authentication (ID and PW), Host authentication (MAC address), IP address filtering
INTEGRATION
Application Programming Open-ended API, support ONVIF, PSIA, ISAPI, and CGI
Web Browser IE7+, Firefox 5.0+, Safari 5.02+
GENERAL
Power supply 24VAC, Max. 22W
Working temperature / humidity -30°C ~ 65°C (-22°F ~ 149°F), 90% or less
Protection level IP66 (outdoor dome)
TVS 4,000V lightning protection, surge protection and voltage transient protection
IK10 (optional)
Dimensions Φ220×305mm
Weight (approx.) 5Kg (11.02Ibs)




Brochure : https://cdn1.npcdn.net/attachments/1550218565504e5b3e37a2d6bc037b25622e97a6fc.pdf
