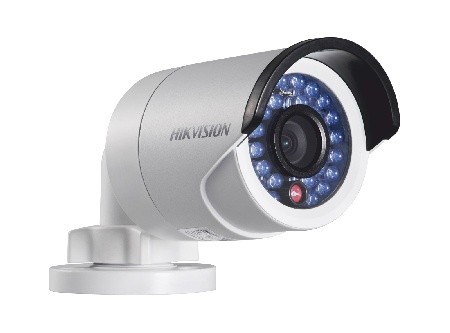

enquiry@asip.com.myDS-2CD2032-I.3MP IR MINI BULLET NETWORK CAMERA
CCTV System --- HIKVISION ---
| Previous ‹‹ | » Next |
- 3Megapixel video resolution
- HD real-time video streaming
- 3D DNR & DWDR & BLC
- up to 30m effective distance
- IP66 standard resistance casing
- PoE (Power over Ethernet)
- Compact bullet design
| CAMERA | |
| Image Sensor | 1/3 progressive scan CMOS |
| Min. illumination | 0.07 lux @F1.2, AGC ON, 0 lux with IR |
| Shutter time | 1/25s ~ 1/100,000s |
| Lens |
4mm@ F2.0 1920 × 1080:Angle of view: 79°(4mm), 49°(6mm), 23.2°(12mm) 2048 × 1536: Angle of view: 70°(4mm),43.3°(6mm), 20.6°(12mm) |
| Lens mount | M12 |
| Day & night | IR cut filter with auto switch |
| Digital noise reduction | 3D DNR |
| Wide dynamic range | Digital WDR |
| COMPRESSION STANDARD | |
| Video compression | H.264 / MJPEG |
| H.264 codec profile | Main profile |
| Bit rate | 32 Kbps ~ 16 Mbps |
| Dual stream | YES |
| IMAGE | |
| Max. Image Resolution | 2048 × 1536 |
| Frame rate | 50Hz: 20fps (2048 x 1536), 25fps (1920 × 1080), 25fps (1280 x 720) |
| Image settings | Rotate mode,Saturation, brightness, contrast, sharpeness adjustable through client software or web browser |
| BLC | Yes, zone configurable |
| ROI | Yes, up to 4 configurable areas |
| NETWORK | |
| Network storage | NAS |
| Alarm trigger | Motion detection, tampering alarm |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X,QoS, IPv6, Bonjour |
| System compatibility | ONVIF, PSIA, CGI, ISAPI |
| General functionalities | User authentication, watermark |
| INTERFACE | |
| Communication interface | 1 RJ45 10M / 100M ethernet port |
| GENERAL | |
| Operating conditions | -30 °C ~ 60 °C (-22°F ~ 140 °F) humidity 95% or less (non-condensing) |
| Power supply | 12 VDC ± 10% , PoE (802.3af) |
| Power consumption | Max. 5W (max. 7W with ICR on) |
| Protect level | IP66 |
| IR range | 30 meters |
| Dimensions (mm) | 60.4×76.9×139.28 mm (2.4 × 3.0 × 5.5in) |
| Weight | 500g (1.1lbs) |
Brochure : https://cdn1.npcdn.net/attachments/1550216777504e5b3e37a2d6bc037b25622e97a6fc.pdf
