DS-2CD2410F-IW.1MP WIRELESS NETWORK CUBE NETWORK

     CCTV System ---    HIKVISION    ---

Previous ‹‹ » Next

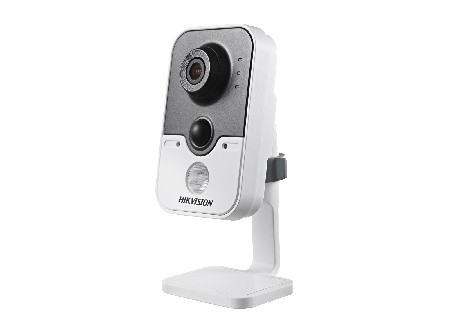

DS-2CD2410F-IW.1MP WIRELESS NETWORK CUBE NETWORK

  • 1 Megapixel(1280x720 @ 30fps) resolution

  • Built-in Micro SD/SDHC/SDXC card slot, up to 128GB

  • IR Range up to 10meters

  • Built-in microphone and speaker

  • Support WIFI connectivity

  • Support PIR(Passive Infrared Detection)


    SPECIFICATIONS


CAMERA
Image Sensor 1/4-inches Progressive Scan CMOS
Min. illumination 0.01Lux @ (F1.2, AGC ON) ,0 Lux with IR
0.028Lux @ (F2.0, AGC ON) ,0 Lux with IR
Shutter time 1/3 s to 1/100,000s
Lens 4 mm @ F2.0
Angle of view: 55°
Lens mount M12
Day & night IR cut filter with auto switch
Digital noise reduction 3D Digital Noise Reduction
Wide dynamic range Digital WDR
COMPRESSION STANDARD
Video compression H.264 / MJPEG
H.264 Type Main Profile
Bit rate 32 Kbps – 8 Mbps
Dual Stream Yes
Audio Compression G.711/G.722.1/G.726/MP2L2
Audio Bit rate 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2)
Max. Image Resolution 1280 x 720
Frame rate 50 Hz: 25 fps (1280 x 720), 25 fps (704 x 576), 25 fps (640 x 480)
Image settings Rotate mode,Saturation, brightness, contrast, sharpeness adjustable through client software or web browser
Backlight Compensation Yes, zone optional
ROI Support
NETWORK
Network storage Local storage: Built-in Micro SD/SDHC/SDXC card slot, up to 128 GB.
NAS (Support NFS,SMB/CIFS)
Alarm trigger Intrusion detection, Line crossing detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General One-key reset, Flash-prevention, dual stream, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering, Anonymous access
System compatibility ONVIF, PSIA, CGI, ISAPI
INTERFACE
Communication interface 1 RJ45 10M / 100M ethernet port
Alarm Input 1
Alarm Output 1
WIFI SPECIFICATIONS
Wireless Standard IEEE802.11b/g/n
Frequency Range 2.4GHz - 2.4835GHz
Channel Bandwidth 20/40MHz Support
Porotocols 802.11b: CCK, QPSK, BPSK; 802.11b/n: OFDM
Security 64/128bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Transmit Output Power 11b: 17±1.5dBm @ 11Mbps
11g: 14±1.5dB @ 54Mbps
11n: 12.5±1.5dB
Receive Sensitiviy 11b: -90dBm @ 11Mbps (Typical)
11g: -75dBm @ 54Mbps (Trypical)
11n: -74dBm (Trypical)
Transfer Rates 11b: 11Mbps
11g: 54Mbps
11n: up to 150Mbps
Wireless Range 50m(depend on environment)
GENERAL
Operating conditions -30 °C ~ 60 °C (-22°F ~ 140 °F)
humidity 95% or less (non-condensing)
Power supply 12 VDC ± 10% , PoE (802.3af)± 10%
Power consumption Max. 5.5W
PIR Angle: 80°
Range: 10m
IR range 10 meters
Dimensions (mm) 72.3×89.9×131.3mm
Weight 400g(0.88lbs)




Brochure : https://cdn1.npcdn.net/attachments/1550035989504e5b3e37a2d6bc037b25622e97a6fc.pdf
