     Toshiba Unified Communication System ---    Strata CIX System    ---

Previous ‹‹ » Next

CIX 670-11

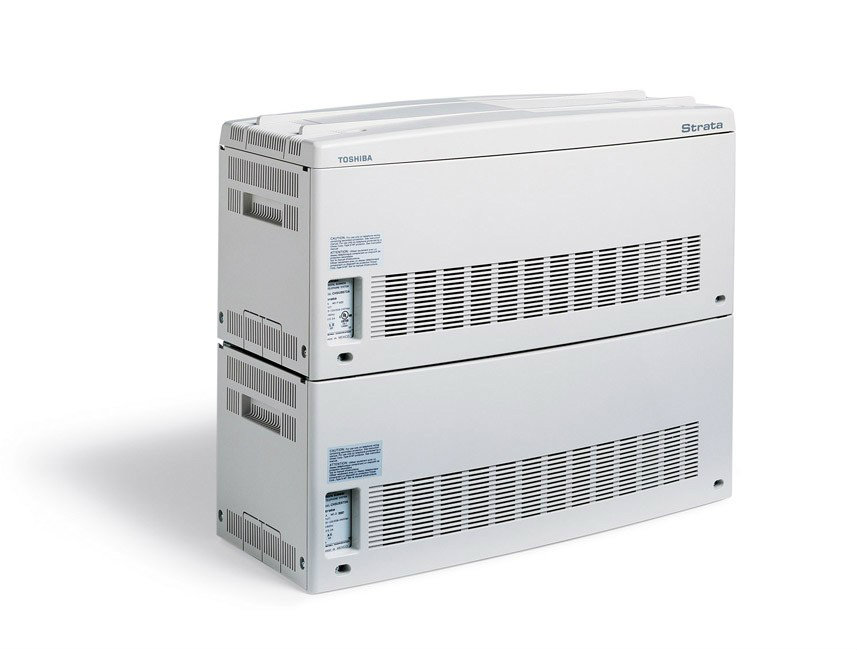

Strata CIX™670 — The Communication System that Grows with Your Business

The Strata CIX670 unify, coordinate and streamline all your communications with comprehensive solutions for your full range of
telecommunication needs.

Modular in architecture, scalable in design, networkable with other systems, the Strata CIX670 gives you incredible capabilities
today—and the ability to build out your system as you grows. Expand up to 560 telephones with CIX670 and even more by
networking multiple systems. Share vital information and functionality between your main office, branch offices, and remote
locations to achieve all your business goals.

For all CIX systems, you can add valuable options like Voice Mail/Auto Attendant/Unified Messaging, Automatic Call Distribution, Voice Over Internet Protocol, Strata Net multiple system networking and more to improve your business' overall productivity and customer service.

Maximum Capacity


Base Cabinet 1
Expansion Cabinet 6
CO Lines 264 (Maximum)
ISDN BRI 256 (Maximum)
ISDN PRI 264 (8 cards}
Stations 672 (CO Lines + Station)

Capacities 264 Trunks or 560 endpoints and combinations up to 672 total
Chassis - Base Base Cabinet (Non Rack Mount)
Measurements Width Height Depth Weight
Metric 67.3 cm 29.5 cm 26.2 cm 14 kg
Chassis - Expansion Expansion Cabinet (CIX670 max. 6)
Measurements Width Height Depth Weight
Metric 67.3 cm 24.9 cm 26.2 cm 13.1 kg
Power Supply Built-in (one per cabinet)
Primary AC Power Input AC 100 ~ 120 VAC or 220 ~ 240 VAC, 4.0 amps maximum AC Frequency 50/60 Hz, Single Phase, 100 Watts per cabinet (maximum)
Power Backup Two pr four 12VDC external batteries (80 ampere-hours max) with ABCS charger can provide power backup operation for 12 - 50 hours depending upon configurations (batteries and ABCS optional)
Operating Temperature 0°C ~ 40°C
Operating Humidity 20 ~ 80% Relative humidity without condesation
Storage Temperature -20°C ~ 60°C
